Introduction

This document defines an implementation-friendly specification of the Proof of Quota (PoQ), which is introduced in Proof of Quota.

Overview

The PoQ ensures that there is a limited number of message encapsulations that a node can perform. This constrains the number of messages a node can introduce to the Blend network. The mechanism regulating these messages is similar to rate-limiting nullifiers.

Construction

The Proof of Quota (PoQ) verifies that a node's public key is within a limit for a core node, a leader node, or a proof of work solution. It consists of three parts:

1. Proof of Core Quota (PoQ_C): Ensures that the core node is declared and hasn’t already produced more keys than the core quota Q_C.
2. Proof of Leadership Quota (PoQ_L): Ensures that the leader node would win the proof of stake for current Cryptarchia epoch and hasn’t already produced more keys than the leadership quota Q_L. That doesn’t guarantee that the node is indeed winning because the PoQ doesn’t check if the note is unspent enabling generation of the proof ahead of time preventing extreme delays.
3. Proof of Work Quota (PoQ_W): Ensures that the prover holds a puzzle solution below the Blend threshold pow_blend_difficulty and hasn’t already produced more keys than the proof of work quota Q_W for that solution. Unlike the other two, this branch requires no stake and no declaration, so it admits provers that hold neither.

The final proof PoQ is valid if any of PoQ_C, PoQ_L or PoQ_W holds. Which of them held is not revealed: the selector is a private witness.

Zero-Knowledge Proof Statement

Public values

A proof attesting that for the following public values derived from blockchain parameters:

class ProofOfQuotaPublic:
    # Output:
    key_nullifier: zkhash   # derived from epoch, private index and the private branch secret
    # Public inputs:
    core_quota: int       # Allowed blending operations per epoch for core nodes (20 bits)
    leader_quota: int     # Allowed blending operations per election win (20 bits)
    core_root: zkhash     # Merkle root of zk_id of the core nodes
    pow_quota: int        # Allowed blending operations per proof of work solution (20 bits)
    pol_ledger_aged: zkhash # Merkle root of the PoL eligible notes
    K_part_one: int       # First part of the signature public key (16 bytes)
    K_part_two: int       # Second part of the signature public key (16 bytes)
    pow_blend_difficulty: zkhash # Blend threshold a PoW ticket must be below
    pol_epoch_nonce: int  # PoL Epoch nonce
    pol_t0: int           # PoL constant t0
    pol_t1: int           # PoL constant t1

The proof's public signal vector is fixed by the circuit: the output first, then the public inputs in the order listed above.

pow_blend_difficulty is for the epoch, derived in Blend Difficulty.

Witness

The prover knows a witness:

class ProofOfQuotaWitness:
    index: int                            # This is the index of the generated key. Limiting this index limits the maximum number of key generated. (20 bits)
    selector: int                         # Indicates a core node (=0), a leader (=1) or a proof of work solution (=2)
    # This part is filled randomly by potential leaders and by proof of work provers
    core_sk: zkhash                       # sk corresponding to the zk_id of the core node
    core_path: list[zkhash]               # Merkle path proving zk_id membership (len = 20)
    core_path_selectors: list[bool]       # Indicates how to read the core_path (if Merkle nodes are left or right in the path)
    # This part is filled randomly by core nodes and by proof of work provers
    pol_sl: int                           # PoL slot
    pol_secret_key: int                   # PoL note secret key
    pol_note_value: int                   # PoL note value
    pol_note_tx_hash: zkhash              # PoL note transaction
    pol_note_output_number: int           # PoL note transaction output number
    pol_noteid_path: list[zkhash]         # PoL Merkle path proving noteID membership in ledger aged (len = 32)
    pol_noteid_path_selectors: list[bool] # Indicates how to read the note_path (if Merkle nodes are left or right in the path)
    # This part is filled randomly by core nodes and by potential leaders
    pow_nonce: zkhash                     # Private nonce the prover ground to solve the puzzle

Note that every inputs and outputs of zero-knowledge proofs are all scalar field elements.

Constraints

Such that the following constraints hold:

Step 1: The prover selects an index for the chosen key. This index must be lower than the allowed quota and not already used. This index is used to derive the key nullifier in step 5. Limiting the possible values of this index also limit the possible nullifier created which produce the desired effect: limiting the generation of keys to a certain quota. index is on 20 bits, so a quota may be at most .

Step 2: If the prover indicated that the node is a core node for the proof, the proof checks that:

1. The core node is registered in the set N = SDP(epoch). This is proven by demonstrating knowledge of a core_sk that corresponds to a declared zk_id, which is a valid SDP registry for the current epoch. The zk_id values are stored in a Merkle tree with a fixed depth of 20, with the root provided as a public input. To build the Merkle tree, zk_id are ordered from the smallest to the biggest (when seen as natural numbers between 0 and ) and remaining empty leaves are represented by the 0 after the sorting (appended at the end of the vector). This structure supports up to 1M validators.
2. The index is valid: index < core_quota.

Step 3: If the prover indicated that the node is a potential leader node for the proof, the proof checks that:

1. The leader node possesses a note that would win a slot in the consensus lottery. Unlike leadership conditions, the proof of quota doesn't verify that the note is unspent. This enables potential provers to generate the PoQ well in advance. All other lottery constraints are the same as in Circuit Constraints.
2. The index is valid: index < leader_quota.

Step 4: If the prover indicated that the proof is backed by proof of work, the proof checks that:

1. The prover knows a pow_nonce whose puzzle ticket, derived from the nonce and the epoch nonce as given in Pseudocode, is strictly below pow_blend_difficulty.
2. The index is valid: index < pow_quota.

Step 5: The prover derives a key_nullifier maintained by blend nodes during the epoch for message deduplication purpose.

selection_randomness = zkhash(b"SELECTION_RANDOMNESS_V1", sk, index, period_nonce)
key_nullifier = zkhash(b"KEY_NULLIFIER_V1", selection_randomness)

Where sk is:

• The core_sk as defined in the Mantle specification if the node is a core node.
• The secret key of the PoL note if it’s a leader node.
• The pow_nonce if the proof is backed by proof of work.

and period_nonce is:

• The pol_epoch_nonce if the node is a core node or if the proof is backed by proof of work.
• The winning slot of the PoL if it’s a leader node.

Here we use two hashes because the selection randomness is used in the Proof of Selection in order to prove the ownership of a valid PoQ (see Proof of Selection).

Step 6: The prover attaches a one-time signature key used in the blend protocol. This public key is split into two 16-byte parts: K_part_one and K_part_two. When written in little-endian byte order, the complete public key equals the concatenation K_part_one||K_part_two.

Pseudocode

# Verify selector is 0, 1 or 2. Note that a width check alone is insufficient:
# two bits would also admit 3, so the domain is constrained explicitly.
selector_squared = selector * selector
(selector_squared - selector) * (selector - 2) == 0

# Lagrange basis for the three branches.
# L1 == 1 iff selector == 1, L2 == 1 iff selector == 2, and the core branch is
# the base term carried by (1 - L1 - L2).
L1 = -selector_squared + 2 * selector
L2 = (selector_squared - selector) * inv_2   # inv_2 is the inverse of 2 in the scalar field

# Verify index is lower than the quota of the selected branch. It is exactly like
# saying index < core_quota if selector == 0, index < leader_quota if selector == 1,
# or index < pow_quota if selector == 2.
index < core_quota + (leader_quota - core_quota) * L1 + (pow_quota - core_quota) * L2

# Check if it's a registered core node
zk_id = zkhash(b"KDF", core_sk)
is_registered = merkle_verify(core_root, core_path, core_path_selectors, zk_id)

# Check if it's a potential leader
is_leader = would_win_leadership(pol_epoch_nonce,
        pol_t0,
        pol_t1,
        pol_ledger_aged,
        pol_sl,
        pol_secret_key,
        pol_note_value,
        pol_note_tx_hash,
        pol_note_output_number,
        pol_noteid_path,
        pol_noteid_path_selectors)

# Check if it's a valid proof of work solution. The ticket is derived directly
# from the private nonce and the epoch nonce, and the comparison
# is over the whole scalar field rather than a truncation of it.
pow_ticket = zkhash(pow_nonce, pol_epoch_nonce)
is_winning_pow = pow_ticket < pow_blend_difficulty

# Verify that it's a core node, a leader, or a valid proof of work solution.
# Every branch predicate is evaluated for every proof; only the selected one is
# required to hold.
assert( is_registered
        + (is_leader - is_registered) * L1
        + (is_winning_pow - is_registered) * L2 == 1)

# Derive nullifier. The period nonce has no L2 term because the proof of work
# branch reuses pol_epoch_nonce, so that term would be zero by construction.
selection_randomness = zkhash(
        b"SELECTION_RANDOMNESS_V1",
        core_sk + (pol_secret_key - core_sk) * L1 + (pow_nonce - core_sk) * L2,
        index,
        pol_epoch_nonce + (pol_sl - pol_epoch_nonce) * L1)
key_nullifier = zkhash(b"KEY_NULLIFIER_V1", selection_randomness)

Proof Compression

The proof confirming that the PoQ is correct must be compressed to a size of 128 bytes, where the UncompressedProof is comprising of 2 and 1 BN256 elements as presented below.

class UncompressedProof:
    pi_a: G1 # BN256 element
    pi_b: G2 # BN256 element
    pi_c: G1 # BN256 element

Proof Serialization

The ProofOfQuota structure contains key_nullifier and the compressed proof transformed in bytes according Use in the Logos Blockchain:. The key_nullifier must be transformed into bytes. The bytes of the compressed proof are then concatenated together with the bytes representing the key_nullifier, with the encoded key_nullifier preceding the encoded compressed proof. Reconstruction of a serialized ProofOfQuota interpreting the bytes as the concatenation of the key_nullifier and of the compressed proof following the same rule of conversion.

class ProofOfQuota:
    key_nullifier: zkhash # 32 bytes
    proof: bytes # 128 bytes

Appendix

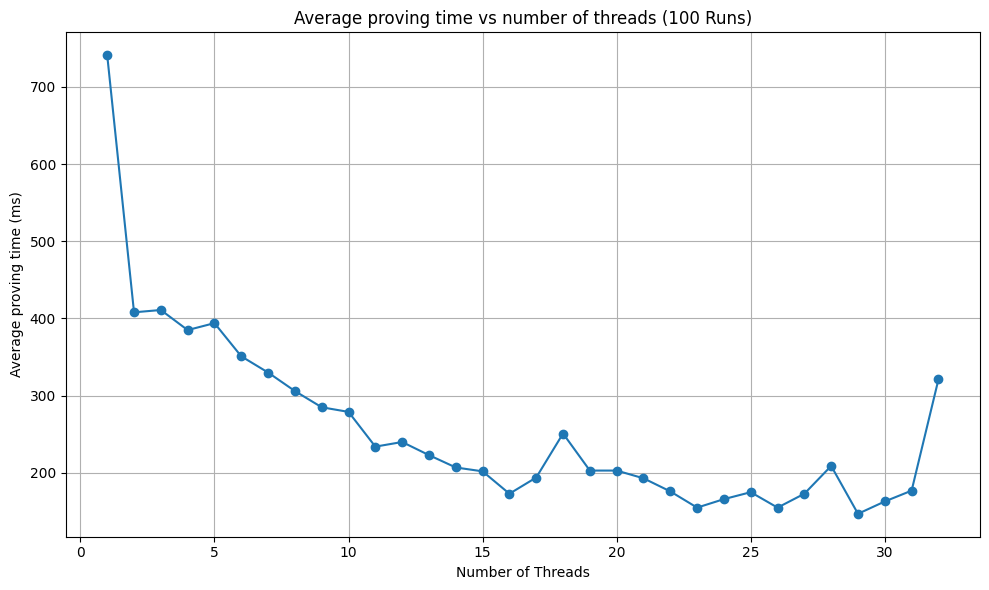

Benchmarks

The material used for the benchmarks is the following:

• CPU: 13th Gen Intel(R) Core(TM) i9-13980HX (24 cores / 32 threads)
• RAM: 32GB - Speed: 5600 MT/s
• Motherboard: Micro-Star International Co., Ltd. MS-17S1
• OS: Ubuntu 22.04.5 LTS
• Kernel: 6.8.0-59-generic
