Introduction

Mantle is a foundational element of Bedrock, designed to provide a minimal and efficient execution layer that connects together Bedrock Services in order to provide the necessary functionality for Zones. It can be viewed as the system call interface of Bedrock, exposing a safe and constrained set of Operations to interact with lower-level Bedrock services, similar to syscalls in an operating system.

Mantle Transactions provide Operations for Zones and blockchain Services to interact with Bedrock. For example, a Zone sequencer posting an update to Bedrock, or a node operator declaring its participation in the Blend Network, would be done through the corresponding Operations within a Mantle Transaction.

Mantle manages assets using a note-based ledger that follows an UTXO model. Each Mantle Transaction can include Transfer Operation, and any excess balance serves as the fee payment.

Overview

Mantle Transaction

The features of the Logos Blockchain are exposed through Mantle Transactions. Each transaction can contain zero or more Operations. Mantle Transactions enable users to execute multiple Operations atomically: the Operations are applied one after the other in the order they appear, and either all of them take effect or none does.

Mantle Operations

Logos Blockchain features are exposed through Mantle Operations, which can be combined in a single Mantle Transaction and executed atomically. These Operations enable transfers and functions such as on-chain data posting, Cross-Zone interactions, SDP interaction, and leader reward claims.

Mantle Ledger

The Mantle Ledger enables asset transfers using a transparent UTXO model. While a Transfer Operation can consume more tokens than it creates, the Mantle Transaction excess balance must exactly pay for the fees. The ledger tracks three kinds of notes: regular notes, service notes (collateral for service declarations) and channel notes (channel bridge funds eligible for PoS participation only).

Transaction Fees

Mantle Transaction fees are derived from a gas model. The Logos Blockchain has two different gas markets, accounting for permanent data storage, and execution costs. Each Operation has an associated Execution Gas cost. Users can build unbalanced Mantle Transactions to tip the leaders and incentivize the network to include their transaction.

Mantle Transaction

Mantle Transactions form the core of Mantle, enabling users to combine multiple Operations to access different functions. Each transaction contains zero or more Operations. The system executes the Operations atomically, while using the Mantle Transaction's excess balance, calculated as the difference between the consumed and created value, as the fee payment.

class MantleTx:
    ops: list[Op]

class Op:
    opcode: byte
    payload: bytes

def mantle_txhash(tx: MantleTx) -> Hash:
    tx_bytes = encode(tx)

    h = Hasher()
    h.update(b"MANTLE_TXHASH_V1")
    h.update(tx_bytes)

    return h.digest()

The hash function used, as well as other cryptographic primitives like ZK proofs and signature schemes, are described in Common Cryptographic Components.

Mantle Transaction Hash

A Mantle Transaction must include all relevant signatures and proofs for each Operation.

class SignedMantleTx:
    tx: MantleTx
    op_proofs: list[OpProof] # each Op has exactly 1 associated proof

Each proof (op proof and signature) must be cryptographically bound to the MantleTx through the mantle_txhash to prevent replay attacks. This binding is achieved by including the MantleTx hash reduced modulo as a public input in every ZK proof.

mantle_txhash_fr = FiniteField(mantle_txhash, byte_order="little", modulus = p)

mantle_txhash is a classical 256-bit hash digest and must be reduced to a field element before being passed to any ZkHasher or used as a ZK public input. We apply a direct modular reduction mod (via FiniteField(..., modulus=p)). Since , the reduction is slightly non-uniform. This is inconsequential in practice as the collision probability remains around , and proof binding is derived from the collision-resistance of the classic hash, not from uniformity over .

Arithmetic

All arithmetic in this specification is checked. Every addition, subtraction, and multiplication over token values, balances, gas amounts, and fees is performed on the stated integer type, and a Mantle Transaction is invalid if any intermediate or final result cannot be represented in that type; results must never silently wrap around or saturate. Token value computations use the precision of TokenValue (see the Notes section). The transaction balance uses a signed 128-bit integer: it can be legitimately negative before the fee check.

The pseudocode expresses these checks with the following helpers; a failed check makes the Mantle Transaction invalid:

UINT64_MAX = 2**64 - 1
INT128_MIN = -2**127
INT128_MAX = 2**127 - 1

def checked_uint64(value: int) -> TokenValue:
        assert 0 <= value <= UINT64_MAX
        return value

def checked_int128(value: int) -> int:
        assert INT128_MIN <= value <= INT128_MAX
        return value

The proof of work difficulty updates are the exception to these bounds; they are specified in Puzzle Target.

Mantle Transaction Fee

The transaction mandatory fee is a sum of two components: the multiplication of the total Execution Gas by the execution_base_fee, and the total size of the encoded signed Mantle Transaction multiplied by the permanent_storage_gas_price. The execution base fee and the permanent storage gas price are protocol-determined values that are the same for every Mantle Transaction in a block. They are derived following [Execution Market and Storage Markets.

def mandatory_fees(signed_tx: SignedMantleTx,
                   ledger: Ledger,
                   channels: dict[ChannelId, ChannelState],
                   permanent_storage_gas_price: TokenValue, # Given by Storage Market
                   execution_gas_base_price: TokenValue) -> uint64:  # Given by Execution Market
    mantle_tx = signed_tx.tx
    permanent_storage_fees = checked_uint64(len(encode(signed_tx)) * permanent_storage_gas_price)
    tx_execution_gas = 0

    for op in mantle_tx.ops:
        # Compute how much execution gas of this operation as defined
        # in the gas determination Appendix, against the state this
        # Operation is validated against
        tx_execution_gas += execution_gas(op, ledger, channels)
    execution_base_fees = checked_uint64(tx_execution_gas * execution_gas_base_price)

    return checked_uint64(execution_base_fees + permanent_storage_fees)

The Execution Gas of an Operation is deterministically derived from that Operation and the state it is validated against.

If the Mantle Transaction is unbalanced (meaning that the Transaction consume more value than it creates) and that the leftover balance cover more than the mandatory fees, the remaining is treated as execution tip fees.

Validation

Given

signed_tx = SignedMantleTx(
    tx=MantleTx(ops),
    op_proofs
)

permanent_storage_gas_price: TokenValue # Given by Storage Market
execution_gas_base_price: TokenValue    # Given by Execution Market

The state validation reads is not a fixed snapshot: it advances as the block is processed. A Mantle Transaction is validated against the state left by the Mantle Transactions preceding it in the block, as defined in Block Proposal Validation, and validation and execution then follow one another Operation by Operation, in the order the Operations appear: the Operation at index i is validated against the state the Operations at indices 0 to i-1 left, then executed to produce the state the Operation at index i+1 is validated against. This is what the ledger, channels, service_notes, declarations and voucher_nullifier_set given to each Operation below denote.

Atomicity is what a failed check means, not simultaneity. If any of the checks below fails, the whole Mantle Transaction is invalid: none of its Operations takes effect, whether or not it was reached. An invalid Mantle Transaction is never skipped over either, the block including it being invalid and nothing of that block being executed.

Mantle validators will ensure the following:

1. We have exactly one proof for each Operation, of the variant that Operation requires.

   assert len(op_proofs) == len(ops)


2. Each Operation is valid, and takes effect before the next one is validated. The transaction balance is accumulated over the same pass, so a TRANSFER consuming a note an earlier Operation created contributes that note's value like any other.

   tx_balance = 0   # Signed 128-bit accumulator: the balance can be legitimately negative
   for op, op_proof in zip(ops, op_proofs):
       assert op.opcode in MANTLE_OPCODES
       validate_mantle_op(mantle_txhash(tx), op.opcode, op.payload, op_proof)
       if op.opcode == TRANSFER:
           for inp in op.inputs:
               tx_balance = checked_int128(tx_balance + get_value_from_note_id(inp))
           for out in op.outputs:
               tx_balance = checked_int128(tx_balance - out.value)
       execute_mantle_op(op.opcode, op.payload)

   def validate_mantle_op(txhash, opcode, payload, op_proof):
       if opcode == CHANNEL_INSCRIBE:
           validate_channel_inscribe(txhash, payload, op_proof)
       # elif opcode == ...
       #    ...

   def execute_mantle_op(opcode, payload):
       if opcode == CHANNEL_INSCRIBE:
           execute_channel_inscribe(payload)
       # elif opcode == ...
       #    ...


3. The Mantle Transaction excess balance pays at least the mandatory fees.

   tx_mandatory_fee = mandatory_fees(signed_tx,                        # uint64
                                     permanent_storage_gas_price,
                                     execution_gas_base_price)
   assert tx_mandatory_fee <= tx_balance
   tx_priority_tip = checked_uint64(tx_balance - tx_mandatory_fee)


Execution

Given

SignedMantleTx(
    tx=MantleTx(ops),
    op_proofs
)

Mantle Validators execute each Operation in ops according to its opcode, in the order the Operations appear and along the state progression Validation defines. The subsections below define, for each opcode, what validating and executing an Operation amount to.

Operations

Opcodes

Channel Operations

Channels allow Zones to post their updates on chain. Channels form virtual chains that overlay on top of the Cryptarchia blockchain. Clients and Followers of a Zone can watch its channel to learn the state of that Zone. Each channel has an associated balance, enabling bridging between Zones and Bedrock.

Message Ordering

Channels form virtual chains by having each message reference its parent message. The order of messages in these channels is enforced by the sequencer by building a hash chain of messages, i.e. new messages reference the previous messages through a parent hash. Given that Cryptarchia has long finality times, these message parent references allow Zone sequencers to continue to post new updates to channels without having to wait for finality. No matter how Cryptarchia forks and reorgs, the channel messages from honest sequencers will eventually be re-included in a way that satisfies the virtual chain order.

Configurations form a second hash chain within the channel: each configuration names the configuration it supersedes, so a pending reconfiguration stays valid while the sequencer keeps posting inscriptions.

The first time a message is sent to an unclaimed channel, the key that signs the initial message becomes the only accredited key in the list (Note that this key may correspond to a threshold signature key). Accredited keys of a channel forms a committee that can configure the channel, withdraw funds and take turns to write messages to that channel following a round-robin algorithm. Configuring a channel includes modifying the list of accredited keys, the round-robin parameters and the required number of signatures to withdraw funds or establish a new configuration.

Validators must maintain the following state to process channel Operations:

channels: dict[ChannelId, ChannelState] # ChannelId is 32 bytes

class ChannelState:
    # Channel Configuration
    accredited_keys: list[Ed25519PublicKey]  # limited to 65 535 keys
    configuration_threshold: u16  # indicating how many keys are
                                  # required to update the configuration

    # Message Ordering
    tip_hash: hash         # Last message of the channel
    config_tip_hash: hash  # Last configuration of the channel

    # Decentralized Sequencing
    tip_slot: Slot
    tip_sequencer: u16      # indicating the actual
                            # sequencer position in the list of accredited keys
    tip_sequencer_starting_slot: Slot
    posting_timeframe: u32  # number of slots (0 = infinity)
    posting_timeout: u32    # number of slots (0 = no timeout)

    # Bridging
    transfer_threshold: u16  # indicating how many keys are
                             # required to transfer or withdraw funds from the channel

def default_channel(block_slot: Slot, keys: list[Ed25519PublicKey]) -> ChannelState:
    return ChannelState(
        tip_hash = ZERO,
        config_tip_hash = ZERO,
        tip_slot = block_slot,
        accredited_keys = keys,
        tip_sequencer = 0,
        tip_sequencer_starting_slot = block_slot,
        posting_timeframe = 0,
        posting_timeout = 0,
        configuration_threshold = 1,
        transfer_threshold = 1)

Note that the user chooses the ChannelId mapping to the ChannelState (but it’s restricted to 32 bytes). We don't currently impose restrictions on it, but we may do so in the future to prevent undesirable behaviors.

Decentralized Sequencing

To determine which sequencer is currently authorized to send messages, we use a round-robin algorithm. When a message is posted to a channel, the following algorithm is used to determine who the sequencer is:

# Round Robin algorithm determining the new sequencer index and the
# new sequencer starting slot
def round_robin(block_slot: Slot, channel: ChannelState) -> (u16, u64):
    elapsed_slots = block_slot - channel.tip_slot
    if elapsed_slots >= channel.posting_timeout and channel.posting_timeout != 0:
        # Get the number of sequencers that get timed out
        sequencers_timed_out = elapsed_slots // channel.posting_timeout
        index = (
            (channel.tip_sequencer + sequencers_timed_out)
            % len(channel.accredited_keys)
        )
        starting_slot = (
            channel.tip_slot
            + sequencers_timed_out * channel.posting_timeout
        )
    else:
        # Get the number of timeframes elapsed to get who is the sequencer
        tip_sequencer_duration = block_slot - channel.tip_sequencer_starting_slot
        index = (
            (channel.tip_sequencer + (tip_sequencer_duration // channel.posting_timeframe))
            % len(channel.accredited_keys)
        )
        starting_slot = (
            channel.tip_sequencer_starting_slot
            + (tip_sequencer_duration // channel.posting_timeframe) * channel.posting_timeframe
        )
    return (index, starting_slot)

Bridging

Channels let their bridged funds keep participating in Proof of Stake. When a user deposits funds into a channel, the deposited notes stay on the ledger and are not turned into inert collateral. They are consumed and immediately re-created as channel notes that continue to count toward Proof of Stake and can still be used to create PoLs (see Channel Notes). Two goals motivate this design:

• More PoS participation, stronger security. Funds deposited into a channel would otherwise leave the staking set. Keeping them as channel notes means the capital backing the application layer also backs consensus security, so bridging does not shrink the stake that secures the chain.
• No split between security and application. A user no longer has to choose between staking funds or using them in a channel. The same funds do both at once. They stay usable inside the channel while still earning Proof of Leadership rewards, so capital is never fragmented between the two.

Ownership vs. staking power. A CHANNEL_DEPOSIT separates the two rights that a normal note bundles together:

• Ownership moves to the channel. The note is registered in the ledger's channel_notes set with the channel as its owner, and the channel keeps full control over it. The deposited notes are consumed and re-created identically: they keep their value and ZkPublicKey, receive a new NoteId derived from the deposit's OpId, and are registered as channel-owned. The channel is now the party responsible for the note.
• Staking power stays with the ZkPublicKey carried by the note. That key does not confer ownership. It only delegates the note's value for PoL creation. Whoever controls the key is the one allowed to turn the note into a PoL and collect the resulting rewards. On deposit this key is still the depositor's, so the user keeps the PoS participation power they had before bridging.

Because the channel owns the note but does not hold the delegated key, the note earns rewards for the key holder, never for the channel itself.

Ageing. Because the deposit re-creates the notes under a new NoteId, a deposited note restarts the ageing process and must age again before it can create a PoL. Bridged funds still count toward Proof of Stake, so the goals above hold, but the participation is not continuous across the deposit.

What each party can do.

This makes delegated staking explicit. Sequencers can assign a channel note to their own ZkPublicKey and earn the Proof of Leadership rewards it produces, but those rewards always follow the assigned key, so the channel earns nothing merely by owning the note. Conversely, ownership never leaving the channel is exactly what lets sequencers redelegate value or cover withdrawals at any time without a user signature.

Warning: a deposit is a transfer of custody. Depositors must understand that channel note handling is fully defined by the channel. Once a CHANNEL_DEPOSIT is executed the note belongs to the channel, and its sequencers can reassign it to any ZkPublicKey with CHANNEL_TRANSFER or release it to whoever they choose with CHANNEL_WITHDRAW, at any time and without any signature from the depositor. The ledger enforces no return path to the original depositor. Holding the note's ZkPublicKey grants PoS participation power only and never a claim on the value, so it confers no ability to recover the funds. A user who deposits into a dishonest or faulty channel has no on-chain recourse. Deposit only into channels you trust to honour their own withdrawal policy.

CHANNEL_INSCRIBE

Write a message to a channel with the message data being permanently stored on the Logos Blockchain.

Payload

class Inscribe:
    channel: ChannelId       # 32 bytes Channel being written to
    inscription : bytes      # Message to be written on the blockchain
    parent: hash             # Previous message in the channel
    signer: Ed25519PublicKey # Identity of message sender

Proof

Ed25519Signature

Execution Gas

Channel Inscribe Operations have a fixed Execution Gas cost of EXECUTION_CHANNEL_INSCRIBE_GAS. See Gas Determination for the Execution Gas values.

Validation

Given

txhash: hash
msg: Inscribe
sig: Ed25519Signature

channels: dict[ChannelId, ChannelState]
block_slot: Slot

Validate

if msg.channel in channels:
    chan = channels[msg.channel]
    current_sequencer_index = round_robin(block_slot, chan)[0]

    # Ensure the signer is the one authorized to write to the channel
    assert msg.signer == chan.accredited_keys[current_sequencer_index]

    # Ensure message is continuing the channel sequence
    assert msg.parent == chan.tip_hash
else:
    # Channel will be created automatically upon execution
    # Ensure that this message is the genesis message (parent == ZERO)
    assert msg.parent == ZERO

# Ensure the msg signer signature
assert Ed25519_verify(txhash, msg.signer, sig)

Execution

Given

msg: Inscribe
sig: Ed25519Signature

channels: dict[ChannelId, ChannelState]
block_slot: Slot

Execute

1. If the channel does not exist, create it just-in-time.

   if msg.channel not in channels:
       channels[msg.channel] = default_channel(block_slot, [msg.signer])


2. Update the channel sequencer.

   chan = channels[msg.channel]
   (new_sequencer_index, new_sequencer_starting_slot) = round_robin(block_slot, chan)

   chan.tip_sequencer_starting_slot = new_sequencer_starting_slot
   chan.tip_sequencer = new_sequencer_index


3. Update the channel tip.

   chan = channels[msg.channel]
   chan.tip_hash = hash(encode(msg))
   chan.tip_slot = block_slot


Example

# Build the inscription
greeting = Inscription(
    channel=CHANNEL_EARTH,
    inscription=b"Live long and prosper",
    parent=ZERO
    signer=spock_pk
)

# Build the transfer operation to pay the fees
transfer = Transfer(inputs=[<spocks_note_id>], outputs=[<change_note>])

# Wrap it in a transaction
tx = MantleTx(
    ops=[Op(opcode=CHANNEL_INSCRIBE, payload=encode(greeting)),
         Op(opcode=TRANSFER, payload=encode(transfer))],
)

# Sign the transaction
signed_tx = SignedMantleTx(
    tx=tx,
    op_proofs=[Ed25519_sign(mantle_txhash(tx), spock_sk),
               transfer.prove(spock_sk)]
)

# Send the transaction to the mempool
mempool.push(signed_tx)

CHANNEL_CONFIG

Overwrite the configuration of a channel.

Payload

class ChannelConfig:
    channel: ChannelId
    parent: hash             # Previous configuration of the channel
    keys: list[Ed25519PublicKey]
    posting_timeframe: u32
    posting_timeout: u32
    configuration_threshold: u16
    transfer_threshold: u16

Proof

A Channel Config is authorized by a threshold of the channel's accredited keys using Multiple Ed25519 Signatures Verification.

class ChannelConfigOpProof:
    signatures: list[Ed25519Signature] # signatures from configuration_threshold
    indexes: list[u16]  # signatures of accredited keys with their index.
                        # indexes must be ordered from smallest to
                        # biggest without duplication

Execution Gas

Channel Config Operations have a linear Execution Gas cost equal to EXECUTION_CHANNEL_CONFIG_GAS * configuration_threshold, where configuration_threshold is the one held in the channel state, and 0 for a channel that does not exist yet. See Gas Determination for the Execution Gas values.

Validation

Given

txhash: zkhash
config: ChannelConfig
proof: ChannelConfigOpProof
channels: dict[ChannelId, ChannelState]

Validate

assert config.configuration_threshold > 0
assert config.transfer_threshold > 0
assert len(config.keys) > 0
assert len(config.keys) < 2^16
# The configuration threshold must be reachable with the accredited keys,
# otherwise the channel would be locked out of any future reconfiguration
assert config.configuration_threshold <= len(config.keys)

if config.channel in channels:
    chan = channels[config.channel]

    # Ensure the configuration is extending the last configuration
    # of the channel
    assert config.parent == chan.config_tip_hash

    # Verify the configuration_threshold signatures (see Appendix)
    MultiEd25519_verify(txhash,
                        proof.signatures,
                        proof.indexes,
                        chan.accredited_keys,
                        chan.configuration_threshold)
else:
    # Channel will be created automatically upon execution
    # Ensure that this configuration is the genesis configuration
    assert config.parent == ZERO

    # No key is accredited yet, so the threshold to verify against is 0
    # and the proof must carry no signature and no index (see Appendix)
    MultiEd25519_verify(txhash,
                        proof.signatures,
                        proof.indexes,
                        [],
                        0)

Execution

Given

config: ChannelConfig

channels: dict[ChannelId, ChannelState]
block_slot: Slot

Execute

1. If the channel does not exist, create it just-in-time.

   if config.channel not in channels:
       channels[config.channel] = default_channel(block_slot, config.keys)


2. Update the configuration.

   chan = channels[config.channel]

   # Update Channel Configuration Parameters
   chan.accredited_keys = config.keys
   chan.configuration_threshold = config.configuration_threshold

   # Update Decentralized Sequencing Parameters
   chan.tip_slot = block_slot
   chan.tip_sequencer = 0
   chan.tip_sequencer_starting_slot = block_slot
   chan.posting_timeframe = config.posting_timeframe
   chan.posting_timeout = config.posting_timeout

   # Update Bridging Parameters
   chan.transfer_threshold = config.transfer_threshold


3. Update the configuration tip.

   chan = channels[config.channel]
   chan.config_tip_hash = hash(encode(config))


Example

Suppose the unique sequencer of Zone A wants to add a key to the list of accredited keys:

# Given a key to add and the current configuration tip of the channel
new_sequencer_pk: Ed25519PublicKey
zone_a_config_tip: hash

# The unique sequencer encodes the update and builds the payload
config = ChannelConfig(
    channel=ZONE_A,
    parent=zone_a_config_tip,
    keys=[old_sequencer_pk, new_sequencer_pk],
    posting_timeframe = 5000,
    posting_timeout = 500,
    configuration_threshold = 2,
    transfer_threshold = 1
)

# Build the transfer operation to pay the fees
transfer = Transfer(inputs=[old_sequencer_funds], outputs=[<change_note>])

tx = MantleTx(
    ops=[Op(opcode=CHANNEL_CONFIG, payload=encode(config)),
         Op(opcode=TRANSFER, payload=encode(transfer))],
)

signed_tx = SignedMantleTx(
    tx=tx,
    op_proofs=[[[Ed25519_sign(mantle_txhash(tx), old_sequencer_sk)], [0]],
               transfer.prove(old_sequencer_sk)]
)

CHANNEL_DEPOSIT

Deposit notes to a channel. The inputs are consumed and re-created as channel notes under a new NoteId, which resets their ageing and prevents the deposit from being replayed after a withdrawal.

Payload

class ChannelDeposit:
    channel: ChannelId
    inputs: list[NoteId]  # the notes to be consumed and re-created as channel notes
    metadata: bytes

Proof

A Channel Deposit proves the ownership of the notes being consumed using a Zero Knowledge Signature Scheme (ZkSignature).

ZkSignature

Execution Gas

Channel Deposit Operations have a fixed Execution Gas cost of EXECUTION_CHANNEL_DEPOSIT_GAS. See Gas Determination for the Execution Gas values.

Validation

Given

mantle_txhash: zkhash # zkhash of mantle tx containing this ledger tx
deposit: ChannelDeposit
deposit_proof: ZkSignature

channels: dict[ChannelId, ChannelState]

ledger: Ledger

Validate

1. Verify that the channel exist

   assert deposit.channel in channels


2. Ensure all inputs are spendable and not already channel notes.

   ledger.assert_spendable(deposit.inputs)


3. Validate ownership over deposited notes.

   input_notes = [ledger[input_note_id] for input_note_id in deposit.inputs]
   input_pks = [note.public_key for note in input_notes]
   assert ZkSignature_verify(mantle_txhash, deposit_proof, input_pks)


Execution

Given

deposit: ChannelDeposit

channels: dict[ChannelId, ChannelState]

ledger: Ledger

Execute

Consume the inputs and create the same Note with new NoteId as channel notes owned by the channel.

# read the notes that are being moved into the channel
notes_to_add = [ledger[input_note_id] for input_note_id in deposit.inputs]

# consume the inputs, which are regular notes and not registered in channel_notes
ledger.execute_spending(deposit.inputs)

# re-create them as channel notes under a new NoteId
deposit_id = derive_op_id(deposit)
ledger.execute_adding(deposit_id, notes_to_add, deposit.channel)

Example

Suppose Alice wants to make a deposit of 50 tokens on Zone A.

# Alice encodes her deposit
deposit = ChannelDeposit(
    channel=ZONE_A,
    inputs=[alice_deposit_note_id]    # This is a note of 50 tokens
    metadata=b"deposit to address: 0x..."
)

# Build the transfer operation to pay the fees
transfer = Transfer(inputs=[Alice_funds], outputs=[<change_note>])


tx = MantleTx(
    ops=[Op(opcode=CHANNEL_DEPOSIT, payload=encode(deposit)),
         Op(opcode=TRANSFER, payload=encode(transfer))],
)

signed_tx = SignedMantleTx(
    tx=tx,
    op_proofs=[deposit.prove(Alice_sk), transfer.prove(Alice_sk)],
)

A Zone that credits a deposit in its own state must be sure the deposit really lands on-chain. If the Zone reflects the deposit through a CHANNEL_INSCRIBE posted in a separate Mantle Transaction, a reorganization can reorder the two so that the inscription is included while the deposit is not, leaving the Zone crediting funds it never received. Two options avoid this:

• Wait for the deposit to be finalized before interpreting it, at the cost of the finalization delay.
• Make the inscription conditional on the deposit, by including a CHANNEL_TRANSFER that consumes the deposited note in the same Mantle Transaction as the inscription. Mantle Transactions execute atomically, so the inscription is included only if the deposited note exists and is consumed. This removes the waiting period entirely.

The second option resets the ageing of the value. A CHANNEL_TRANSFER consumes its inputs and creates new notes, so the resulting note starts the ageing process again and must age before it can create a PoL. A CHANNEL_DEPOSIT resets ageing for the same reason, since it consumes its inputs and re-creates them under a new NoteId. A CHANNEL_WITHDRAW keeps the NoteId of the notes it releases and therefore never resets ageing.

CHANNEL_WITHDRAW

Withdraw notes from a channel.

Payload

class ChannelWithdraw:
    channel: ChannelId
    inputs: list[NoteId]

Proof

A Channel Withdraw is authorized by a threshold of the channel's accredited keys using Multiple Ed25519 Signatures Verification.

class ChannelWithdrawOpProof:
    signatures: list[Ed25519Signature] # exactly transfer_threshold signatures
    indexes: list[int]    # signatures of accredited keys with their index
                          # indexes must be ordered from smallest to
                          # biggest without duplication

Execution Gas

Channel Withdraw Operations have a linear Execution Gas cost equal to EXECUTION_CHANNEL_WITHDRAW_GAS * transfer_threshold, where transfer_threshold is the one held in the channel state. See Gas Determination for the Execution Gas values.

Validation

Given

txhash: zkhash
withdrawal: ChannelWithdraw
proof: ChannelWithdrawOpProof

channels: dict[ChannelId, ChannelState]
ledger: Ledger

Validate

1. Check that the channel exists

   assert withdrawal.channel in channels


2. Check that the inputs are valid and belongs to the channel

   ledger.assert_spendable(withdrawal.inputs, withdrawal.channel)


3. Check the signatures (see Multiple Ed25519 Signatures Verification)

   MultiEd25519_verify(txhash,
                       proof.signatures,
                       proof.indexes,
                       channels[withdrawal.channel].accredited_keys,
                       channels[withdrawal.channel].transfer_treshold)


Execution

Given

withdrawal: ChannelWithdraw

channels: dict[ChannelId, ChannelState]
ledger: Ledger

Execute

Remove the inputs from channel notes owned by the channel. The notes are neither consumed nor re-created: they keep their NoteId, value and ZkPublicKey, and are simply unregistered in the channel_notes set.

for note_id in withdrawal.inputs:
    ledger.channel_notes.pop(note_id)

Example

Suppose the unique sequencer of Zone A wants to withdraw 50 tokens.

# Sequencer encodes his withdrawal
withdrawal = ChannelWithdraw(
    channel=ZONE_A,
    inputs  = [Channel_note_id]
)

# Build the transfer operation to pay the fees
transfer = Transfer(inputs=[Sequencer_funds], outputs=[<change_note>])

tx = MantleTx(
    ops=[Op(opcode=CHANNEL_WITHDRAW, payload=encode(withdrawal)),
         Op(opcode=TRANSFER, payload=encode(transfer))],
)

signed_tx = SignedMantleTx(
    tx=tx,
    op_proofs=[[[Ed25519_sign(mantle_txhash(tx), sequencer_sk)],[0]],
               transfer.prove(Sequencer_node_sk)],
)

CHANNEL_TRANSFER

Assign funds from a channel to new ZkPublicKey. This funds are only usable to participate in PoS and to withdraw from the channel.

Payload

class ChannelTransfer:
    channel: ChannelId
    inputs: list[NoteId]
    outputs: list[Note]

Proof

class ChannelTransferOpProof:
    signatures: list[Ed25519Signature] # signature from transfer_threshold keys
    indexes: list[int]    # signatures of accredited keys with their index.
                          # indexes must be ordered from smallest to biggest without duplication

Execution Gas

CHANNEL_TRANSFER Operations have a linear Execution Gas cost equal to EXECUTION_CHANNEL_TRANSFER_GAS * transfer_threshold, where transfer_threshold is the one held in the channel state. See Gas Determination for the Execution Gas values.

Validation

Given

txhash: zkhash
chan_transfer: ChannelTransfer
proof: ChannelTransferOpProof

channels: dict[ChannelId, ChannelState]
ledger: Ledger

Validate

1. Check that the outputs are valid

ledger.assert_valid_output(chan_transfer.outputs)

2. Check that the channel exists

assert chan_transfer.channel in channels

3. Check that the inputs are valid and belongs to the channel

ledger.assert_spendable(chan_transfer.inputs, chan_transfer.channel)

4. Check the balance

input_amount = checked_uint64(sum(ledger.get_note(input).value for input in chan_transfer.inputs))
output_amount = checked_uint64(sum(output.value for output in chan_transfer.outputs))
assert input_amount == output_amount

5. Check the signatures (see Multiple Ed25519 Signatures Verification)

MultiEd25519_verify(txhash,
					proof.signatures,
                    proof.indexes,
                    channels[chan_transfer.channel].accredited_keys,
                    channels[chan_transfer.channel].transfer_treshold)

Execution

Given

chan_transfer: ChannelTransfer

channels: dict[ChannelId, ChannelState]
ledger: Ledger

Execute

1. Remove inputs from the ledger

ledger.execute_spending(chan_transfer.inputs, chan_transfer.channel)

2. Add outputs to the ledger.

chan_transfer_id = derive_op_id(chan_transfer)
ledger.execute_adding(chan_transfer_id, chan_transfer.outputs, chan_transfer.channel)

Example

Suppose the unique sequencer of Zone A wants to attribute 50 tokens to themself.

# Sequencer encodes their assignation
chan_transfer = ChannelTransfer(
    channel=ZONE_A,
    inputs = [Channel_note_id]
    outputs = [Note(pk=alice, value=50)]
)

# Build the transfer operation to pay the fees
transfer = Transfer(inputs=[Sequencer_funds], outputs=[<change_note>])

tx = MantleTx(
    ops=[Op(opcode=CHANNEL_TRANSFER, payload=encode(chan_transfer)),
         Op(opcode=TRANSFER, payload=encode(transfer))],
)

signed_tx = SignedMantleTx(
    tx=tx,
    op_proofs=[[[Ed25519_sign(mantle_txhash(tx), sequencer_sk)],[0]],
                              transfer.prove(Sequencer_node_sk)],
)

Service Declaration Protocol (SDP) Operations

These Operations implement the Service Declaration Protocol.

Validators must keep the following state when implementing SDP Operations:

service_notes: dict[NoteID, ServiceNote]
declarations: dict[DeclarationID, DeclarationInfo]

class ServiceNote:
    declarations: set[DeclarationID]

Common SDP Structures

class ServiceType(Enum):
    BN=0 # Blend Network; the one-byte discriminant is the canonical encoding

class Locator(bytes):
    # multiaddr binary form; the canonical encoding
    # (see SDP: Locators)
    def validate(self):
        assert len(self) <= 329
        assert validate_multiaddr(self)

class MinStake:
    stake_threshold: int # stake value
    epoch: EpochNumber # epoch number

class ServiceParameters:
    inactivity_period: NumberOfEpochs # number of epochs
    epoch: EpochNumber                # epoch number at which the Service Parameters were set

class DeclarationInfo:
    service: ServiceType
    locators: list[Locator]
    provider_id: Ed25519PublicKey
    zk_id: ZkPublicKey
    service_note_id: NoteId
    created: EpochNumber
    active: EpochNumber
    withdraw_at: EpochNumber | None
    # SDP ops updating a declaration must use monotonically increasing nonces
    nonce: int

SDP_DECLARE

The service registration follows the definition given in Declaration Message:

Payload

class DeclarationMessage:
    service_type: ServiceType
    locators: list[Locator]
    provider_id: Ed25519PublicKey
    zk_id: ZkPublicKey
    service_note_id: NoteId

Service notes are introduced in Service notes and serve as Service collaterals. They cannot be spent before the owner withdraw its participation from the declared service(s).

Proof

class DeclarationProof:
    zk_sig: ZkSignature             # signature proving ownership over
                                    # service note and zk_id
    provider_sig: Ed25519Signature  # signature proving ownership of provider key

see: Zero Knowledge Signature Scheme (ZkSignature).

Execution Gas

SDP Declare Operations have a fixed Execution Gas cost of EXECUTION_SDP_DECLARE_GAS. See Gas Determination for the Execution Gas values.

Validation

Given

txhash: zkhash                  # the txhash of the transaction we are validating
declaration: DeclarationMessage # the declaration we are validating
proof: DeclarationProof

min_stake: MinStake      # the (global) minimum stake setting
ledger: Ledger           # the set of unspent notes
service_notes: dict[NoteId, ServiceNote]
declarations: dict[NoteId, DeclarationInfo]

Validate

The declaration is verified according to Declare.

1. Ensure ownership over the service note, zk_id and provider_id.

   assert ZkSignature_verify(
       txhash, proof.zk_sig, [note.public_key, declaration.zk_id]
   )
   assert Ed25519_verify(txhash, proof.provider_sig, provider_id)


2. Ensure declaration does not already exist.

   assert declaration_id(declaration) not in declarations


3. Ensure the locators list is non-empty and has no more than 8 entries.

   assert len(declaration.locators) >= 1
   assert len(declaration.locators) <= 8


4. Ensure the service note exists and its value is sufficient for joining the service.

   assert ledger.is_unspent(declaration.service_note_id)
   note = ledger.get_note(declaration.service_note_id)
   assert note.value >= min_stake.stake_threshold


5. Ensure the note has not already been used for this service.

   if declaration.service_note in service_notes:
       service_note = service_notes[declaration.service_note]
       services = [declarations[declare_id] for declare_id in service_note.declarations]
       assert declaration.service_type not in services


Execution

Given

declaration: DeclarationMessage # the declaration we are executing
current_epoch: EpochNumber
service_notes : dict[NoteId, ServiceNote]

Execute

1. Create the service note state if it doesn't already exist.

   if declaration.service_note not in service_notes:
       service_notes[declaration.service_note_id] = ServiceNote(declarations=set())

   service_note = service_notes[declaration.service_note_id]


2. Add this declaration to the service note.

   declare_id = declaration_id(declaration)
   service_note.declarations.add(declare_id)


3. Store the declaration as explained in Declaration Storage.

   declarations[declare_id] = DeclarationInfo(
       service: declaration.service
       locators: declaration.locators
       provider_id: declaration.provider_id
       zk_id: declaration.zk_id
       service_note_id: declaration.service_note_id
       declaration,
       created=current_epoch,
       active=current_epoch + 2,
       withdraw_at=None
       nonce=0
   )


Example

# Assume `alice_note` is in the ledger:
alice_note = Utxo(
    txhash=0x2948904F2F0F479B8F8197694B30184B0D2ED1C1CD2A1EC0FB85D299A192A447,
    output_number=3,
    note=Note(value=500, public_key=alice_pk_1),
)

# Alice wishes to lock it to join the Blend network
declaration=DeclarationMessage(
    service_type=ServiceType.BN,
    locators=["/ip4/203.0.113.10/tcp/4001/p2p"],
    provider_id=alice_provider_pk,
    zk_id=alice_pk_2,
    service_note_id=alice_note.id()
)

# Build the transfer operation to pay the fees
transfer = Transfer(inputs=[fee_note_id], outputs=[])


tx = MantleTx(
    ops=[Op(opcode=SDP_DECLARE, payload=encode(declaration)),
         Op(opcode=TRANSFER, payload=encode(transfer))],
)
txhash = mantle_txhash(tx)

declaration_proof = DeclarationProof(
    # proof of ownership of the staked note and zk_id
    zk_sig=ZkSignature([alice_sk_1, alice_sk_2], txhash),
    # proof of ownership of the provider id
    provider_sig=Ed25519Signature(alice_provider_sk, txhash),
)

SignedMantleTx(
    tx=tx,
    op_proofs=[declaration_proof, transfer.prove(alice_sk_1)],
)

SDP_WITHDRAW

The service withdrawal follows the definition given in Withdraw Message.

Payload

class WithdrawMessage:
    declaration: DeclarationID
    service_note_id: NoteId
    nonce: int

Proof

A signature from the zk_id and the service note pk attached to the declaration is required for withdrawing from a service, (see Zero Knowledge Signature Scheme (ZkSignature)).

ZkSignature

Execution Gas

SDP Withdraw Operations have a fixed Execution Gas cost of EXECUTION_SDP_WITHDRAW_GAS. See Gas Determination for the Execution Gas values.

Validation

Given

txhash: zkhash # Mantle transaction hash of the tx containing this operation
withdraw: WithdrawMessage
signature: ZkSignature

ledger: Ledger
service_notes: dict[NoteId, ServiceNote]
declarations: dict[DeclarationID, DeclarationInfo]

Validate

1. Ensure that the service note exists and is bound to this declaration.

   assert ledger.is_unspent(withdraw.service_note_id)
   assert withdraw.service_note_id in service_notes

   service_note = service_notes[withdraw.service_note_id]

   assert withdraw.declaration in service_note.declarations


2. Validate SDP withdrawal according to Withdraw.

   1. Ensure declaration exists.

      assert withdraw.declaration in declarations
      declare_info = declarations[withdraw.declaration]


   2. Ensure the declaration is not already scheduled for withdrawal.

      assert declare_info.withdraw_at is None


   3. Ensure service note pk and zk_id attached to this declaration authorized this Operation.

      service_note = ledger[withdraw.service_note_id]
      assert ZkSignature_verify(txhash, signature, [service_note.pk, declare_info.zk_id])


   4. Ensure that the nonce is greater than the previous one.

      assert withdraw.nonce > declare_info.nonce


Execution

Given

withdraw: WithdrawMessage
signature: ZkSignature

current_epoch: EpochNumber # current epoch
ledger: Ledger
service_notes: dict[NoteId, ServiceNote]
declarations: dict[DeclarationID, DeclarationInfo]

Execute

Executes the withdrawal protocol Withdraw.

1. Update the declaration info with the nonce and the withdrawal epoch.

   declare_info = declarations[withdraw.declaration]
   declare_info.nonce = withdraw.nonce
   declare_info.withdraw_at = current_epoch + 2


Example

withdraw=Withdraw(
    declaration=alice_declaration_id,
    service_note_id=alices_service_note_id
    nonce=1579532
)

# Build the transfer operation to pay the fees
transfer = Transfer(inputs=[alices_service_note_id],
                    outputs=[Note(100, alice_note_pk)])

tx = MantleTx(
    ops=[Op(opcode=SDP_WITHDRAW, payload=encode(withdraw)),
         Op(opcode=TRANSFER, payload=encode(transfer))],
)

SignedMantleTx(
    tx=tx,
    # proof ownership of the withdrawn note and zk id
    op_proofs=[ZkSignature_sign([alice_note_sk, alice_sk], mantle_txhash(tx)),
               transfer.prove(alice_sk)]
)

SDP Epoch Finalization

Withdrawn declarations are removed by Mantle as part of the epoch transition, not when the WithdrawMessage is processed. The rewards of epoch withdraw_at - 1 (Withdraw) are distributed in the first block of epoch withdraw_at + 1 (see Service Reward Distribution Protocol). In that same block, after the rewards have been distributed, every declaration with withdraw_at + 1 <= current_epoch is removed and its stake unlocked. Declarations that withdrew without earning a final reward are removed by the same step.

Given

current_epoch: EpochNumber
service_notes: dict[NoteId, ServiceNote]
declarations: dict[DeclarationID, DeclarationInfo]

Execute

For every declare_id, declare_info in declarations where declare_info.withdraw_at is not None and declare_info.withdraw_at + 1 <= current_epoch:

1. Remove the declaration from its service note.

   service_note = service_notes[declare_info.service_note_id]
   service_note.declarations.remove(declare_id)


2. Remove the declaration.

   del declarations[declare_id]


3. Unlock the note once it is no longer bound to any declaration.

   if len(service_note.declarations) == 0:
       del service_notes[declare_info.service_note_id]


SDP_ACTIVE

The service active action follows the definition given in Active Message.

Payload

class Active:
    declaration: DeclarationID
    nonce: int
    metadata: bytes # a service-specific node activeness metadata

Proof

ZkSignature

Execution Gas

SDP Active Operations have a fixed Execution Gas cost of EXECUTION_SDP_ACTIVE_GAS. See Gas Determination for the Execution Gas values.

Validation

Given

txhash: zkhash # Mantle transaction hash of the tx containing this operation
active: Active
signature: ZkSignature

declarations: dict[DeclarationID, DeclarationInfo]

Validate

assert active.declaration in declarations
declaration_info = declarations[active.declaration]

assert active.nonce > declaration_info.nonce

assert ZkSignature_verify(txhash, signature, declaration_info.zk_id)

Execution

Given

active: Active

current_epoch: EpochNumber # epoch of the block containing this operation
declarations: dict[DeclarationID, DeclarationInfo]

Execute

Executes the active protocol Active. If the service-specific activity logic rejects the message, the Operation is invalid.

1. Update the declaration info with the nonce and the epoch.

   declaration_info = declarations[active.declaration]
   declaration_info.nonce = active.nonce
   declaration_info.active = current_epoch


Example

active=Active(
    declaration=alice_declaration_id,
    nonce=1579532,
    metadata=b"Look, I am still doing my job"
)

# Build the transfer operation to pay the fees
transfer = Transfer(inputs=[fee_note_id], outputs=[])

tx = MantleTx(
    ops=[Op(opcode=SDP_ACTIVE, payload=encode(active))],
)
txhash = mantle_txhash(tx)

SignedMantleTx(
    tx=tx,
    op_proofs=[Ed25519_sign(txhash, validator_sk), transfer.prove(fee_note_sk)]
)

Leader Operations

LEADER_CLAIM

This Operation claims the leader's block reward anonymously.

Payload

class ClaimRequest:
    rewards_root: zkhash # Merkle root used in the proof for voucher membership
    voucher_nf: zkhash
    public_key: ZkPublicKey

Proof

The provider proves that they have won a proof of Leadership before the start of the current epoch, i.e., their reward voucher is indeed in the voucher set: Proof of Claim.

Execution gas

Leader Claim Operations have a fixed Execution Gas cost of EXECUTION_LEADER_CLAIM_GAS. See Gas Determination for the Execution Gas values.

Validation

Given

mantle_txhash: zkhash
claim : ClaimRequest
last_voucher_root: zkhash # The last root of the voucher Merkle tree
                          # at the start of the epoch
voucher_nullifier_set: set[zkhash]
proof: ProofOfClaim

Validate

assert claim.voucher_nf not in voucher_nullifier_set
assert claim.rewards_root == last_voucher_root
validate_proof(claim, proof, mantle_txhash)

Execution

Given

claim: ClaimRequest

ledger: Ledger
voucher_nullifier_set: set[zkhash]
leaders_rewards: TokenValue   # The pool of tokens to be claim by leaders
leader_reward: TokenValue     # The amount one leader can claim

Execution

1. Add claim.voucher_nf to the voucher_nullifier_set.

2. Denoting by leader_reward the amount defined for leader rewards in Leaders Reward, construct a single output note with value leader_reward under the public key defined in the payload, and insert it into the Ledger:

   output_note=Note(
       value = leader_reward
       public_key = claim.public_key,
   )
   claim_id = derive_op_id(claim)
   ledger.execute_adding(claim_id, [output_note])


3. Reduce the leader’s reward leaders_rewards value by the same amount (without ZK proof).

Example

secret_voucher = 0xDEADBEAF;
reward_voucher = leader_claim_voucher(secret_voucher)
voucher_nullifier = leader_claim_nullifier(secret_voucher)

claim=ClaimRequest(
    rewards_root=REWARDS_MERKLE_TREE.root(),
    voucher_nf=voucher_nullifier,
    public_key=leader_one_time_key
)

# Build the transfer operation to pay the fees
transfer = Transfer(inputs=[<fee_note>], outputs=[<change_note>])

tx = MantleTx(
    ops=[Op(opcode=LEADER_CLAIM, payload=encode(claim)),
         Op(opcode=TRANSFER, payload=encode(transfer))],
)

claim_proof = claim.prove(
    secret_voucher,
    REWARDS_MERKLE_TREE.path(leaf=reward_voucher),
    mantle_txhash(tx)
)

SignedMantleTx(
    tx=tx,
    op_proofs=[claim_proof, transfer.prove(fee_note_sk)]
)

Proof of Work Operations

Validators must maintain the following state to process proof of work Operations:

pow_reward_pool: TokenValue      # Reserve the rewards are paid from
epoch_pow_reward: TokenValue     # Reward per claim, fixed for the epoch
difficulty_reward: PowTarget     # the reward threshold, retargeted every block
pow_nullifiers: set[zkhash]      # Spent solutions, retained for the acceptance window
block_slots: dict[hash, SlotNumber]  # Slots of recently seen blocks, for the window check

PowTarget, the acceptance window, and the maintenance of pow_reward_pool, epoch_pow_reward and difficulty_reward between blocks are specified in Proof of Work.

CLAIM_POW_REWARD

This Operation claims a reward from the proof of work reward pool by presenting a puzzle solution.

Payload

class ClaimPowRewardOp:
    epoch_nonce: zkhash        # Epoch nonce the solution was found against
    block_hash: hash           # Recent canonical block the solution is anchored to
    public_key: ZkPublicKey    # Key the reward note is paid to

Proof

A ZkSignature by the secret key corresponding to public_key, over the transaction's mantle_txhash. The signature proves knowledge of that secret key, so a solution cannot be found by searching over public keys directly.

Execution gas

Claim Operations have a fixed Execution Gas cost of EXECUTION_CLAIM_POW_REWARD_GAS. See Gas Determination for the Execution Gas values.

Validation

Given

mantle_txhash: zkhash
claim: ClaimPowRewardOp            # the CLAIM_POW_REWARD payload
claim_proof: ZkSignature           # the op_proofs entry for this Operation

current_slot: SlotNumber           # slot of the block including this claim
epoch_nonce_current: zkhash        # Cryptarchia epoch nonce of the current epoch
epoch_nonce_previous: zkhash       # and of the epoch before it
WINDOW: SlotNumber                 # the acceptance window, in slots
difficulty_reward: PowTarget       # retargeted every block
pow_nullifiers: set[zkhash]        # spent solutions, retained for WINDOW
pow_reward_pool: TokenValue
epoch_pow_reward: TokenValue

The epoch nonces are the Cryptarchia epoch nonce of Epoch Nonce, and WINDOW is derived in Acceptance Window.

Validate

# 1. Claiming must be enabled for this block: the pool must be able to cover a reward.
assert epoch_pow_reward > 0
assert pow_reward_pool >= epoch_pow_reward

# 2. The referenced block must be canonical and within the acceptance window.
block = get_block_from_hash(claim.block_hash)   # None if unknown or not canonical
assert block is not None
assert 0 <= current_slot - block.slot <= WINDOW

# 3. The solution must have been found against the current or the previous epoch.
assert claim.epoch_nonce in (epoch_nonce_current, epoch_nonce_previous)

# 4. The ticket must satisfy the reward threshold.
puzzle_ticket = zkhash(claim.public_key,
                       FiniteField(claim.block_hash, byte_order="little", modulus=p),
                       claim.epoch_nonce)
assert puzzle_ticket < difficulty_reward

# 5. The solution must not have been claimed before. The nullifier is the ticket.
assert puzzle_ticket not in pow_nullifiers

# 6. The claim must be signed by the key the reward is paid to.
assert ZkSignature_verify(mantle_txhash, claim_proof, [claim.public_key])

Execution

Given

claim: ClaimPowRewardOp
puzzle_ticket: zkhash              # computed in validation step 4

ledger: Ledger
pow_reward_pool: TokenValue
epoch_pow_reward: TokenValue       # fixed for the epoch
pow_nullifiers: set[zkhash]

Execution

1. Add puzzle_ticket to the pow_nullifiers set. The entry is retained until the claim's referenced block leaves the acceptance window.

2. Construct a single output note of value epoch_pow_reward under the public key given in the payload, and insert it into the Ledger:

   output_note = Note(
       value = epoch_pow_reward,
       public_key = claim.public_key,
   )
   claim_id = derive_op_id(claim)
   ledger.execute_adding(claim_id, [output_note])


3. Reduce the pow_reward_pool by the same amount:

   pow_reward_pool = checked_uint64(pow_reward_pool - epoch_pow_reward)


Example

claim = ClaimPowRewardOp(
    epoch_nonce=get_current_epoch_nonce(),
    block_hash=recent_canonical_block_hash(),
    public_key=reward_pk,          # a key whose ticket satisfies difficulty_reward
)

# The reward note is spendable by the following Operation, so it pays the fee
reward_note_id = derive_note_id(derive_op_id(claim), 0,
                                Note(value=epoch_pow_reward, public_key=reward_pk))
transfer = Transfer(inputs=[reward_note_id], outputs=[<change_note>])

tx = MantleTx(
    ops=[Op(opcode=CLAIM_POW_REWARD, payload=encode(claim)),
         Op(opcode=TRANSFER, payload=encode(transfer))],
)

SignedMantleTx(
    tx=tx,
    op_proofs=[ZkSignature(reward_sk, mantle_txhash(tx)), transfer.prove(reward_sk)]
)

TRANSFER

Transactions must prove the ownership of spent notes. In classical blockchains, this is done through a signature. To stay compatible with our architecture, the signature is done by a ZK proof (see Zero Knowledge Signature Scheme (ZkSignature)), proving the knowledge of the secret key associated with the public key.

Transactions allow complete transaction linkability and the public key spending the note is not hidden.

Payload

class Transfer:
    inputs: list[NoteId]  # the list of consumed note identifiers
                          # must be non-empty
    outputs: list[Note]

Proof

A Transfer proves the ownership of the consumed notes using a Zero Knowledge Signature Scheme (ZkSignature).

ZkSignature

Execution Gas

Transfer have a fixed Execution Gas cost of EXECUTION_TRANSFER_GAS. See Gas Determination for the Execution Gas values.

Validation

Given

mantle_txhash: zkhash # zkhash of mantle tx containing this ledger tx
transfer: Transfer
transfer_proof: ZkSignature

ledger: Ledger

Validate

1. Ensure all inputs are spendable and not in a channel.

   ledger.assert_spendable(transfer.inputs)


2. Validate transfer proof to show ownership over input notes.

   input_notes = [ledger[input_note_id] for input_note_id in transfer.inputs]
   input_pks = [note.public_key for note in input_notes]
   assert ZkSignature_verify(mantle_txhash, transfer_proof, input_pks)


3. Ensure outputs are valid.

   ledger.assert_valid_output(transfer.output)


Execution

Given

transfer: Transfer
transfer_proof: ZkSignature

ledger: Ledger

Execution

1. Remove inputs from the ledger.

   ledger.execute_spending(transfer.inputs)


2. Add outputs to the ledger.

   transfer_id = derive_operation_id(transfer)
   ledger.execute_adding(transfer_id, transfer.outputs)


Example

alice_note_id = ... # assume Alice holds a note worth 501 tokens
bob_note=Note(
    value=500
    public_key=bob_pk,
)

transfer = Transfer(
    inputs=[alice_note_id],
    outputs=[bob_note],
)

Mantle Ledger

Notes

Notes are composed of two fields representing their value and their owner:

class Note:
    value: TokenValue   # uint64
    public_key: ZkPublicKey # 32 bytes

Note Id

A note can be uniquely identified by the Operation that created it and its output number: (op_id, output_number) if each Operation are uniquely identifiable. For this reason, every Operation that output notes have a unique payload that is used to derive the Operation identifier. Because it is often useful to have a commitment to the note fields for use in ZK proofs (e.g., for PoL), we included the note in the note identifier derivation.

def derive_op_id(operation: Op) -> Hash:
    op_bytes = encode(op)
    h = Hasher() # /!\ This is a classic hash not a zkhash /!\
    h.update(b"OPERATION_ID_V1")
    h.update(op_bytes)
    return h.digest()

def derive_note_id(op_id: Hash, output_number: int, note: Note) -> NoteId:
    return zkhash(
        FiniteField(b"NOTE_ID_V1", byte_order="little", modulus= p),
        FiniteField(op_id, byte_order="little", modulus= p),
        FiniteField(output_number, byte_order="little", modulus= p),
        FiniteField(note.value, byte_order="little", modulus= p),
        note.public_key
    )

op_id is a classical 256-bit hash digest and must be reduced to a field element before being passed to the ZkHasher. We apply a direct modular reduction mod p (via FiniteField(..., modulus=p)). Since , the reduction is slightly non-uniform, values in appear one extra time, but this is inconsequential in practice: the collision probability remains around , and NoteId uniqueness is not derived from uniformity of op_id over but from the collision-resistance of the underlying hash and per-operation payload uniqueness.

These note identifiers uniquely define notes in the system and cannot be chosen by the user. Nodes maintain the set of notes through a dictionary mapping the NoteId to the note.

Service notes

Service notes are special notes in Mantle that serve as collateral for Service Declarations. A note can become a service note after being locked by executing a Declare Operation, preventing it from being spent until explicitly released through a Withdraw Operation. The system maintains a mapping of service note IDs to their supporting declarations. Though locked, these notes remain in the Ledger and can still participate in Proof of Stake. When service providers withdraw all their declarations, the associated note(s) become unlocked and available for spending again.

Channel Notes

Channel notes are on-ledger notes minted to represent channel funds. They are distinct from Service Notes as they can’t be used to declare a service. However, they follow the same ageing rule as ordinary notes since they are part of the ledger and can be used for PoL creation once aged enough.

The system maintains a channel_notes set in the Ledger tracking all active channel NoteId and their respective ChannelId.

Ledger

class Ledger:
    notes: list[Note]
    service_notes: dict[NoteId, ServiceNote]
    channel_notes: dict[NoteId, ChannelId]

Input Notes Spendability Validation

A note is spendable if and only if it exists, it is not spent or a service note. The following function validates that an input of notes can be consumed:

class Ledger:
    def assert_spendable(inputs: list[NoteId], channel_id: ChannelId | None):
		# Assert inputs are empty
		assert len(inputs) > 0

        ## Check there is no duplicate
        assert len(inputs) == len(set(inputs))

            # Check that each note is individualy not a service note, for the correct channel and unspent
            for note_id in inputs:
                assert ledger.is_unspent(note_id)
                assert note_id not in service_notes
                if channel_id is None:
                	assert note_id not in ledger.channel_notes
                else:
                	assert note_id in ledger.channel_notes
                    assert ledger.channel_notes[note_id] == channel_id

Output Notes Validation

Before an output of notes can be inserted into the Ledger, every note field must satisfy the following constraints:

class Ledger:
    def assert_valid_output(outputs: list[Note]):
        for note in outputs:
            assert note.value > 0
            assert note.value <= 2**64-1

Consuming Input Notes Execution

Consuming a set of notes removes them from the Ledger’s Merkle tree and recycles their leaf indices:

class Ledger:
    def execute_spending(inputs: list[NoteId], channel_id: ChannelId | None):
        for note_id in inputs:
            # updates the merkle tree to zero out the leaf for this entry
            # and adds that leaf index to the list of unused leaves
            ledger.remove(note_id)
            if channel_id is not None:
                ledger.channel_notes.pop(note_id)

Creating Output Notes Execution

Creating notes derives their NoteId from the Operation’s OpId and insert them in the Ledger:

class Ledger:
    def execute_adding(op_id: Hash, outputs: list[Note], channel_id: ChannelId | None):
        for (output_index, output_note) in enumerate(outputs):
            output_note_id = derive_note_id(op_id, output_index, output_note)
            ledger.add(output_note_id)
            if channel_id is not None:
                ledger.channel_notes[output_note_id] = channel_id

Appendix

Gas Determination

From the [Analysis] Gas Cost Determination, we get the table below:

Zero Knowledge Signature Scheme (ZkSignature)

A proof attesting that for the following public values:

class ZkSignaturePublic:
    public_keys: list[ZkPublicKey] # public keys signing the message (len = 32)
    msg: zkhash # a finite field element uniquely representing the message

The prover knows a witness:

class ZkSignatureWitness:
    # The list of secret keys used to signed the message
    secret_keys: list[ZkSecretKey] # (len = 32)

Such that the following constraints hold:

• The number of secret keys is equal to the number of public keys.

  assert len(secret_keys) == len(public_keys)


• Each public key is derived from the corresponding secret key.

  assert all(
      notes[i].public_key == zkhash(FiniteField(b"KDF", byte_order="little", modulus= p), secret_keys[i])
      for i in range(len(public_keys))
  )


• The proof is bound to msg (it’s the mantle_tx_hash reduced modulo in case of transactions).

  For implementation, the ZkSignature circuit will take a maximum of 32 public keys as inputs. To prove ownership of fewer keys, the remaining inputs will be padded with the public key corresponding to the secret key 0 and ignored during execution. The outputs have no size limit since they are included in the hashed message.

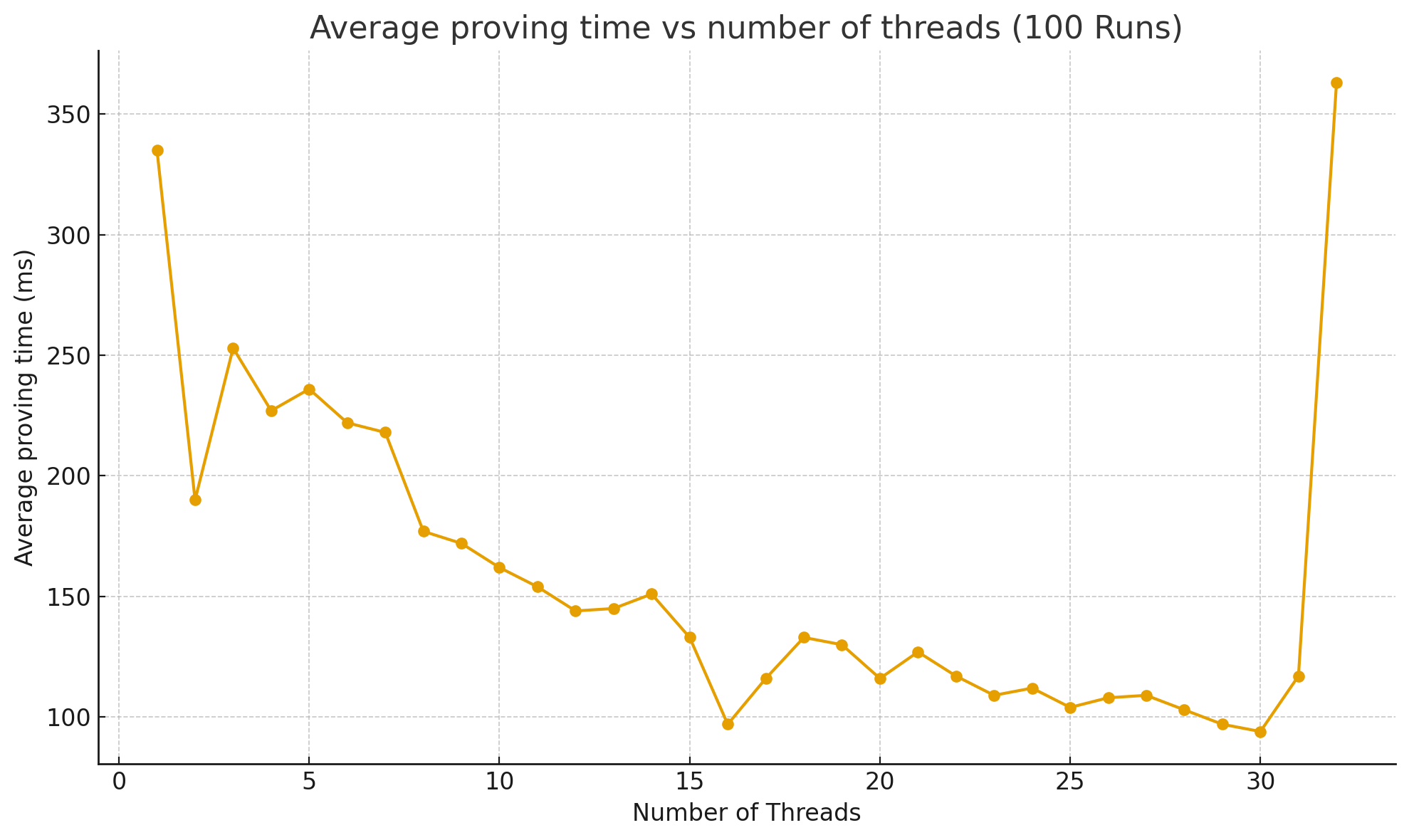

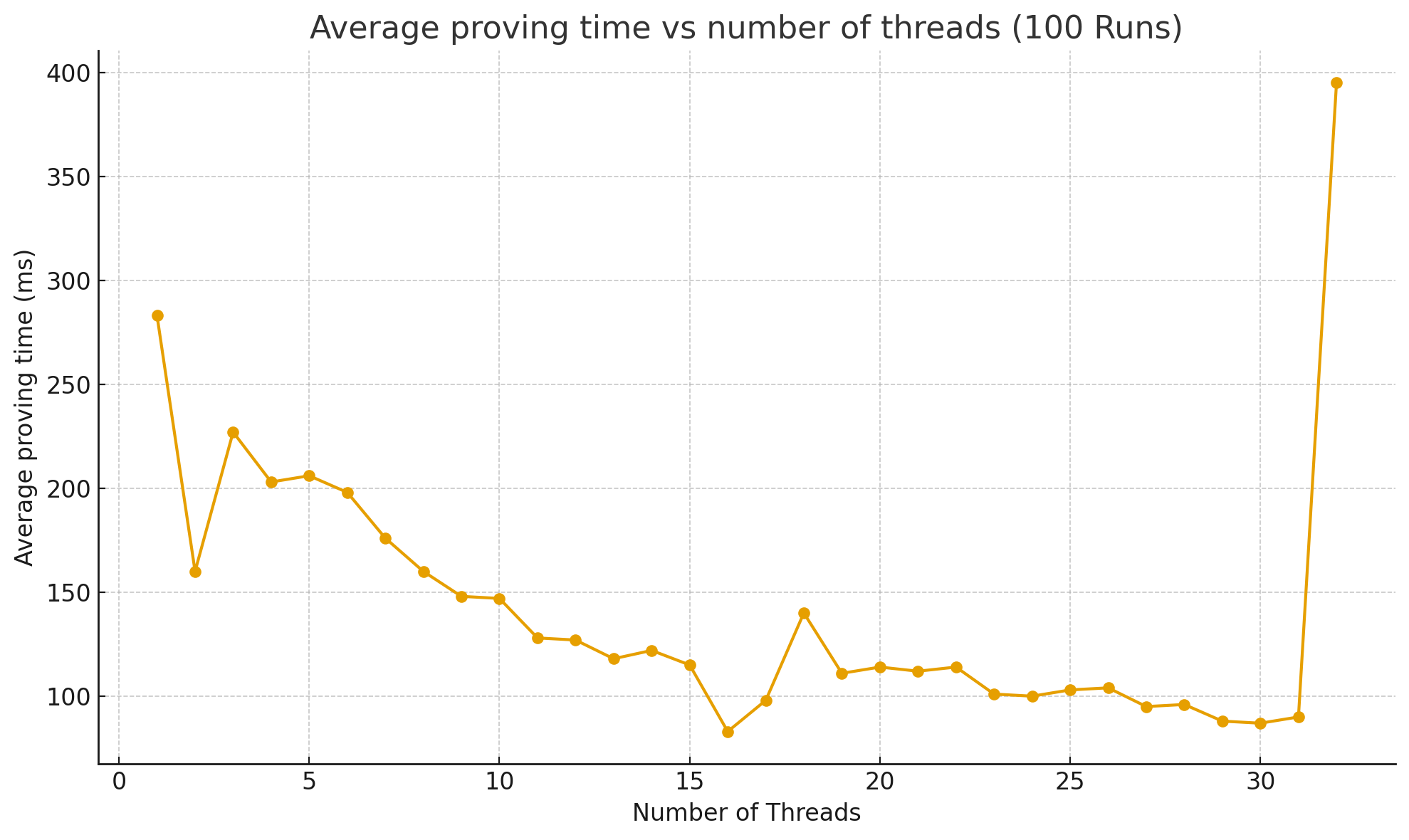

Benchmark

The material used for the benchmarks is the following:

• CPU : 13th Gen Intel(R) Core(TM) i9-13980HX (24 cores / 32 threads)
• RAM : 32GB - Speed: 5600 MT/s
• Motherboard: Micro-Star International Co., Ltd. MS-17S1
• OS : Ubuntu 22.04.5 LTS
• Kernel : 6.8.0-59-generic

Multiple Ed25519 Signatures Verification

Several operations (e.g. Channel Configuration and Channel Withdraw) authorize an action with a threshold of Ed25519 signatures produced by a list of accredited keys. Each signature comes with the index, in the accredited keys list, of the key that produced it. The verification is factored out in the following routine:

Given

msg: zkhash                        # the message being signed (the mantle txhash)
signatures: list[Ed25519Signature]
indexes: list[u16]                 # for each signature, the index in `keys` of
                                   # the signing key
keys: list[Ed25519PublicKey]       # the accredited keys
threshold: u16                     # the number of required signatures

Verify

def MultiEd25519_verify(msg, signatures, indexes, keys, threshold):
    # There must be exactly one index per signature
    assert len(signatures) == len(indexes)

    # There must be exactly `threshold` signatures
    assert len(signatures) == threshold

    # Indexes must be ordered from smallest to biggest without duplication.
    # Being strictly increasing rejects duplicates and, since `idx` is used to
    # index `keys`, guarantees every index stays within bounds.
    for i in range(len(indexes) - 1):
        assert indexes[i] < indexes[i + 1]

    # Each signature must be valid for the accredited key at its index
    for sig, idx in zip(signatures, indexes):
        assert Ed25519_verify(msg, keys[idx], sig)

Proof of Claim

A proof attesting that given these public values:

class ProofOfClaimPublic:
    voucher_root: zkhash # Merkle root of the reward_voucher maintained by everyone
    voucher_nullifier: zkhash
    mantle_tx_hash_fr: zkhash # attached hash reduced modulo p

The prover knows the following witness:

class ProofOfClaimWitness:
    secret_voucher: zkhash
    voucher_merkle_path: list[zkhash]
    voucher_merkle_path_selectors: list[bool]

such that the following constraints hold:

• The reward voucher is derived from the secret voucher.

assert reward_voucher == zkhash(
    FiniteField(b"REWARD_VOUCHER", byte_order="little", modulus= p),
    secret_voucher)

• There exists a valid Merkle path from the reward voucher as a leaf to the Merkle root.

assert voucher_root == path_root(leaf=reward_voucher,
    path=voucher_merkle_path,
    selectors=voucher_merkle_path_selectors)

• The voucher nullifier is derived from the secret voucher correctly.

assert voucher_nullifier == zkhash(
    FiniteField(b"VOUCHER_NF", byte_order="little", modulus= p),
    secret_voucher)

• The proof is bound to the mantle_tx_hash reduced modulo .

Benchmark

The material used for the benchmarks is the following:

• CPU : 13th Gen Intel(R) Core(TM) i9-13980HX (24 cores / 32 threads)
• RAM : 32GB - Speed: 5600 MT/s
• Motherboard: Micro-Star International Co., Ltd. MS-17S1
• OS : Ubuntu 22.04.5 LTS
• Kernel : 6.8.0-59-generic

Test Vectors

To see what the payloads represent, refer to Mantle Transaction Encoding.

Operation Id

Mantle Transaction Hash

Declaration Id

The declaration_id (Declaration Storage) is Hash(service||provider_id||zk_id||locators) (BLAKE2b, 256-bit output, no DST), where service is the one-byte ServiceType discriminant and locators is the Locators production (Mantle Transaction Encoding): the element count followed by each Locator's binary form prefixed with its 2-byte little-endian byte length. Note that the preimage field order differs from the SDP_DECLARE wire order and excludes service_note_id. This vector reuses the fields of the SDP_DECLARE payload from Operation Id.
