Introduction

In Mantle, each Mantle Transaction contains one or more Operations. These components consume gas, measured through fixed gas units that reflect their execution or storage impact. Logos Blockchain introduces two independent gas markets:

• Execution Gas: measuring computational workload.
• Permanent Storage Gas: measuring cost of fully replicated storage.

Gas constants are carefully calibrated to reflect the computational and storage requirements of different operations on Logos Blockchain. By standardizing gas measurements, the system can accurately charge fees proportional to resource usage, preventing network abuse and incentivizing efficient transaction design.

Overview

We conducted a comprehensive analysis of execution requirements for each Operation type in Mantle Transactions. This detailed examination allowed us to determine precise gas amounts for each Operation based on the actual computational resources consumed.

The gas constants we established are strategically divided between permanent storage and execution components, directly proportional to their respective resource utilization within Mantle Transactions. This separation ensures that gas costs accurately reflect the true computational burden of different operations. Moreover, gas can also be adjusted arbitrarily to incentivize or disincentivize the usage of certain Operations compared to others.

Our methodology involved measuring execution complexity and defining how gas is determined for each Gas Market. This is critical for proper network operation as it directly impacts transaction prioritization and network economics.

Permanent Storage Gas

Permanent Storage is paid directly for the entire signed Mantle Transaction. The Permanent Storage Gas price is included in the Mantle Transaction structure and is used to determine the Permanent Storage fee. 1 Permanent Storage Gas corresponds to 1 byte.

permanent_storage_fee = len(encode(tx_signed)) * permanent_storage_gas_price

Execution Gas

Execution is a second general market that represents how costly an Operation is to execute. This cost can be fixed or variable based on the content of the Operation. The Execution Gas price is contained in the Mantle Transaction structure and each Operation defines its execution gas amount. 1 Execution Gas corresponds to 1,000 CPU cycles.

execution_fee = tx.ops.get_summed_gas() * execution_gas_price

The gas derivation of each Operation are:

TRANSFER_GAS = 590
CHANNEL_INSCRIBE_GAS   = 56
CHANNEL_CONFIG_GAS     = 56 * configuration_threshold
CHANNEL_DEPOSIT_GAS    = 590
CHANNEL_WITHDRAW_GAS   = 56 * withdraw_threshold
SDP_DECLARE_GAS        = 646
SDP_WITHDRAW_GAS       = 590
SDP_ACTIVE_GAS         = 590
LEADER_CLAIM_GAS       = 580

and come from our implementation observations as described in Gas determination from measures. To get these numbers, we based our calculations on the following measures:

Comparison, list searching, hashes and operation in small fields are neglected. We also supposed that the initialization cost for batch verification is paid by everyone and deduced from the block directly. The user then pay only for the part that is proportional to the number of proofs.

Transfer

The Execution Gas of the Transfer Operation compensates for the verification of the ZkSignature proof.

Execution: ~590k CPU cycles.

• Verification of the ZK signature: 590,000 cycles.

Input Gas

Input gas covers the computational cost of verifying that one Note Id exists in the Ledger and is not locked. Additionally, it compensates for the removal of one Note Id from the Ledger.

Execution: negligible.

• Verification that the note is in the ledger: negligible.
• Verification that the note is unlocked: negligible.
• Removing of the note from the ledger: negligible.

Output Gas

Output gas accounts for the computational resources required to verify that one output is well-formed and for its inclusion in the Ledger.

Execution: negligible.

• Verification of the output validity: negligible.
• Insertion of the note in the ledger: negligible.
• Derivation of the note identifiers: negligible

Operations

Channel Inscription

The validation process includes verifying an Eddsa25519 signature, confirming that the signer is authorized for the specified channel, and checking the chaining sequence of the channel. The execution encompasses creating channel records (if not previously used) and updating the tip of the channel.

Execution: ~56k CPU cycles.

• Verification of the Ed25519 signature: 56,000 cycles.
• Verification of the signer authorization: negligible.
• Verification of channel sequencing: negligible
• Update the channel state: negligible

Channel Deposit

The Execution Gas of the Channel Deposit Operation compensates for the verification of the ZkSignature proof and for the check of the inputs.

Execution: ~590k CPU cycles.

• Verification of the ZK signature: 590,000 cycles.
• Verification that the notes are in the ledger: negligible.
• Verification that the notes are unlocked: negligible.
• Increase of the channel balance: negligible

Channel Withdraw

The validation process requires verifying multiple Eddsa25519 signatures, and updating the balance of the channel. The execution require deriving note Id and adding notes to the ledger.

Execution: ~56k CPU cycles * withdraw_threshold.

• Verification of withdraw_threshold Ed25519Signatures: 56,000 cycles per signature.
• Decrease of the channel balance: negligible.
• Verification of the output validity: negligible.
• Insertion of the note in the ledger: negligible.
• Derivation of the note identifiers: negligible

Channel Config

This gas amount covers the verification of multiple Eddsa25519 signatures and ensures the operation is well-formed. This represents the computational cost associated with processing channel configuration operations.

• Execution: ~56k CPU cycles * configuration_threshold.
  • Verification of the configuration_threshold Ed25519 signatures: 56,000 cycles per signature.
  • Modification of the state of the channel: negligible.

SDP Declaration

This gas covers multiple verification processes: confirming ownership of the locked note through ZkSignature verification, validating the zk_id via a second ZkSignature, and establishing ownership of the provider_id through an Eddsa25519 signature. It also includes verification of the declaration format, confirmation of note existence, validation that the note is not already locked, and verification of its amount. Additionally, it accounts for the computational costs associated with the note locking mechanism and declaration management.

Execution: ~ 646k CPU cycles.

• Verification of the Ed25519 signature: 56,000 cycles.
• Verification of the ZK signature: 590,000 cycles.
• Verification that the declaration doesnt already exist: negligible.
• Verification of locator length: negligible.
• Verification of locked note existence: negligible.
• Verification of locked note value: negligible.
• Verification that the note isnt already locked for the service: negligible.
• Locking the note: negligible.

SDP Withdraw

This gas covers a verification process that includes: confirming ownership of the zk_id through ZkSignature verification, validating the existence of the locked note, verifying that the note has exceeded its lock period, and confirming that the declaration exists and has not been previously withdrawn. The validation process also ensures that the withdrawal message's nonce is greater than any previous nonce, preventing replay attacks. During execution, the system updates the declaration's status to withdrawn, removes the declaration from the locked note's associated declarations, andif the note has no remaining declarationsremoves it from the locked notes dictionary.

Execution: ~ 590k CPU cycles.

• Verification that the note exists, is locked and bound to the declaration: negligible.
• Verification that the note can be unlocked: negligible.
• Verification that the declaration exist: negligible.
• Verification of the ZK signature: 590,000 cycles.
• Verification that the declaration wasnt already withdrawn: negligible.
• Verification of nonce incrementation: negligible.
• Update declaration: negligible.
• Remove declaration from locked note: negligible.
• Unlock the note if not linked to any declaration: negligible.

SDP Activation

This gas funds the verification of the zk_id signature through the ZkSignature verification process, validates the existence of the declaration in the system, and ensures that the activation message's nonce is greater than any previous nonce to prevent replay attacks. The validation includes confirming that the declaration ID is present in the declarations dictionary and that the signature corresponds to the declaration's registered zk_id public key.

• Execution: ~590k CPU cycles.
  • Verification that the declaration exist: negligible.
  • Verification of nonce incrementation: negligible.
  • Verification of the ZK signature: 590,000 cycles.
  • Evaluation of the activity depends on the service and is neglected here

Leader Claims

This gas covers the verification of reward voucher ownership through a Proof of Claim, confirmation that the voucher nullifier is not already present in the nullifier set, and validation that the rewards root exists in the list of recent voucher Merkle tree roots. The execution process involves adding the voucher nullifier to the nullifier set and increasing the Mantle Transaction balance by the designated leader reward amount.

Execution: ~580k CPU cycles.

• Verification that the voucher nullifier isnt already in the set: negligible.
• Verification that the rewards root is one of the root of the reward tree of the last blocks: negligible.
• Verification of the proof of claim: 580,000 cycles.
• Insertion of the nullifier in the voucher nullifier set: negligible.
• Insertion of the note in the ledger: negligible.
• Derivation of the note identifiers: negligible

Annex

Gas determination from measures

The material used for the benchmarks is the following:

• CPU : 13th Gen Intel(R) Core(TM) i9-13980HX (24 cores / 32 threads)
• RAM : 32GB - Speed: 5600 MT/s
• Motherboard: Micro-Star International Co., Ltd. MS-17S1
• OS : Ubuntu 22.04.5 LTS
• Kernel : 6.8.0-59-generic

Eddsa Signature Verification

To get the numbers, we executed the test included in the official Rust implementation of the node.

Over 100 iterations, verifying an Eddsa25519 signature requires an average of 56,000 CPU cycles.

Proof of Claim

To get the numbers, we executed the test included in the official Rust implementation of the node.

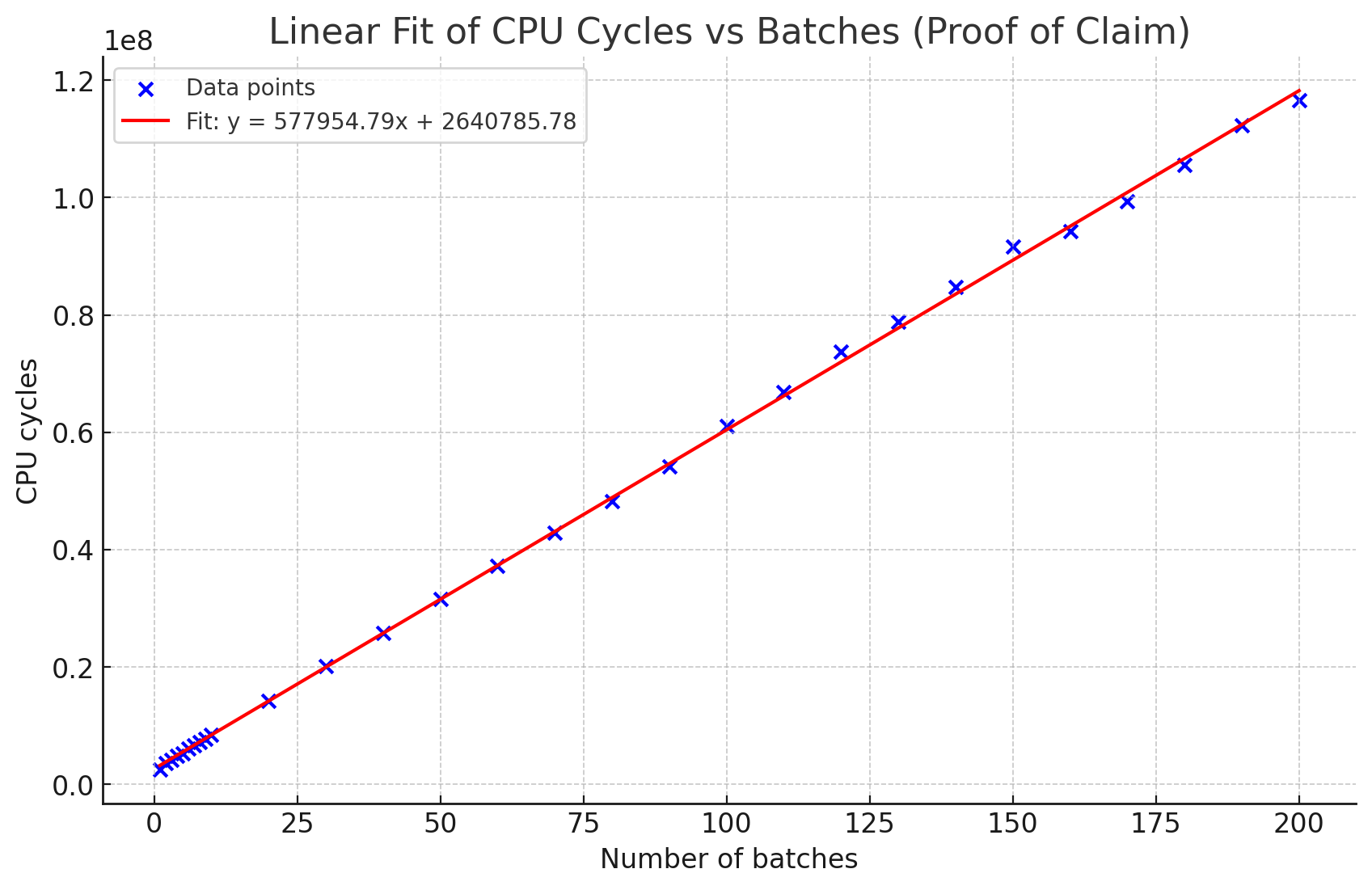

We found the best linear curve approximating these measures (over 100 iterations):

We got the curve that we decided to approximate to :

ZkSignature

To get the numbers, we executed the test included in the official Rust implementation of the node.

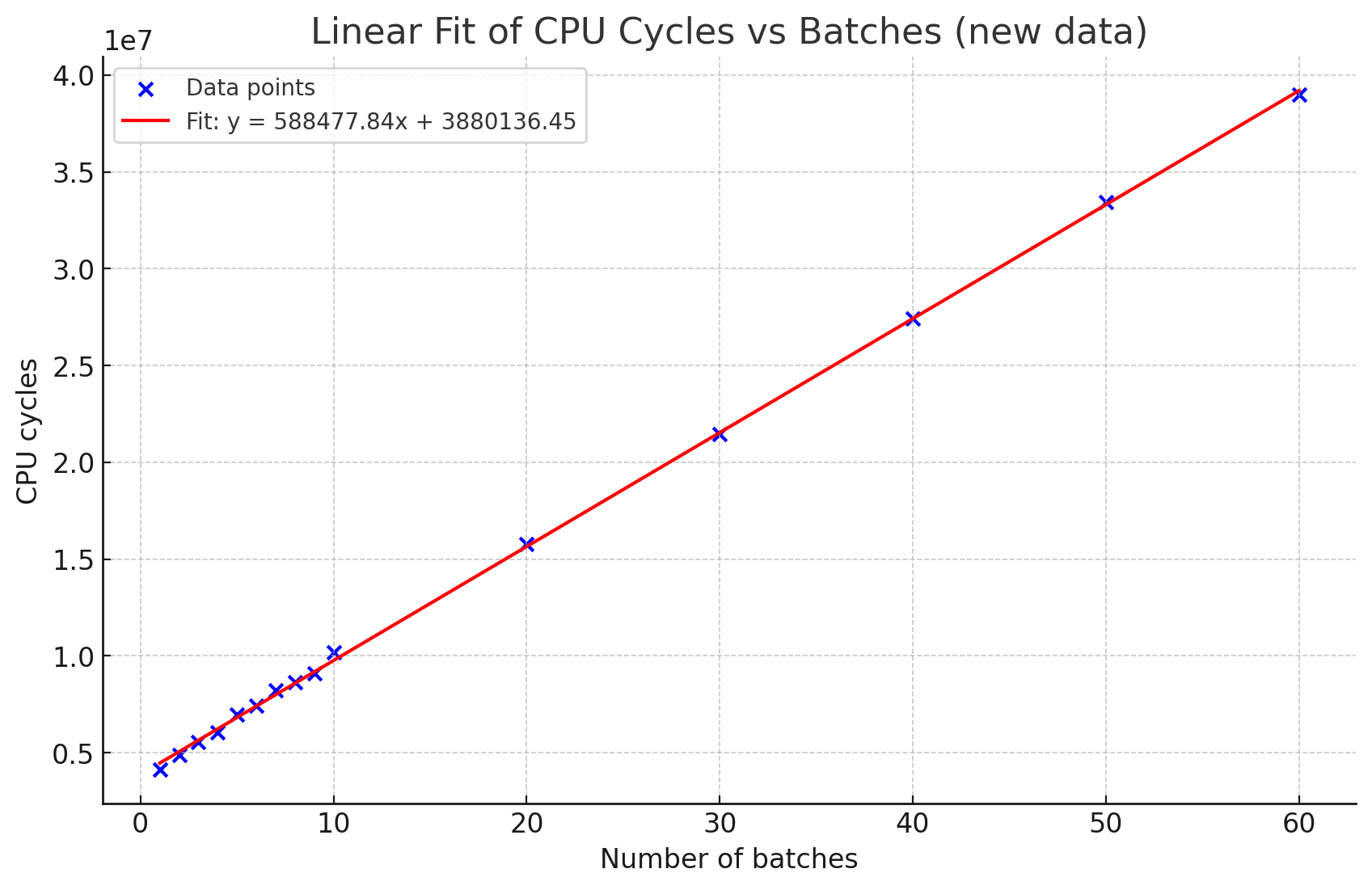

We found the best linear curve approximating these measures (over 1000 iterations):

We got the curve that we decided to approximate to :
