BEDROCK-ARCHITECTURE-OVERVIEW

Timeline

• 2026-01-30 — 0ef87b1 — New RFC: CODEX-MANIFEST (#191)
• 2026-01-30 — 5c123d6 — Nomos/raw/bedrock architecture overview raw (#257)

Abstract

Bedrock enables high-performance Sovereign Rollups to leverage the security guarantees of Nomos. Sovereign Rollups build on Nomos through Bedrock Mantle, Bedrock's minimal execution layer which in turn runs on Cryptarchia, the Nomos consensus protocol. Taken together, Bedrock provides a private, highly scalable, and resilient substrate for high-performance decentralized applications.

Keywords: Bedrock, Sovereign Rollups, Mantle, Cryptarchia, channels, NomosDA, Blend Network, consensus, privacy

Semantics

The keywords "MUST", "MUST NOT", "REQUIRED", "SHALL", "SHALL NOT", "SHOULD", "SHOULD NOT", "RECOMMENDED", "MAY", and "OPTIONAL" in this document are to be interpreted as described in RFC 2119.

Definitions

Background

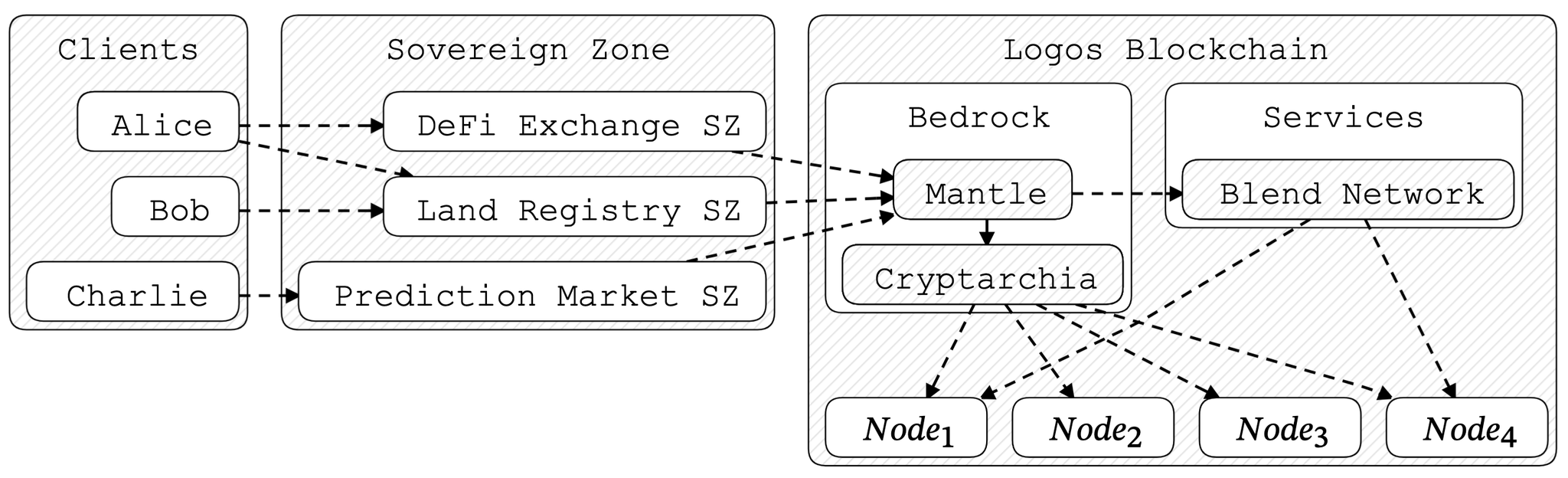

Bedrock is composed of Cryptarchia and Bedrock Mantle. Bedrock is in turn supported by the Bedrock Services: Blend Network and NomosDA. Together they provide an interface for building high-performance Sovereign Rollups that leverage the security and resilience of Nomos.

┌─────────────┐   ┌──────────────────────┐   ┌─────────────────────────────────────────┐
│   Clients   │   │    Sovereign Zone    │   │            Nomos Blockchain             │
├─────────────┤   ├──────────────────────┤   ├───────────────────┬─────────────────────┤
│             │   │                      │   │      Bedrock      │      Services       │
│   Alice   ──┼──>│   DeFi Exchange SZ   │   │    ┌─────────┐    │  ┌───────────────┐  │
│             │   │                      │   │    │ Mantle  │<───┼──│ Blend Network │  │
│   Bob     ──┼──>│   Land Registry SZ   │──>│    └────┬────┘    │  └───────────────┘  │
│             │   │                      │   │         │         │                     │
│   Charlie ──┼──>│ Prediction Market SZ │   │         v         │                     │
│             │   │                      │   │  ┌─────────────┐  │                     │
└─────────────┘   └──────────────────────┘   │  │ Cryptarchia │  │                     │
                                             │  └──────┬──────┘  │                     │
                                             └─────────┼─────────┴─────────────────────┘
                                                       │
                                          ┌────────────┼────────────┐
                                          │            │            │
                                          v            v            v
                                     ┌────────┐  ┌────────┐  ┌────────┐
                                     │ Node_1 │  │ Node_2 │  │ Node_3 │
                                     └────────┘  └────────┘  └────────┘

Bedrock Mantle

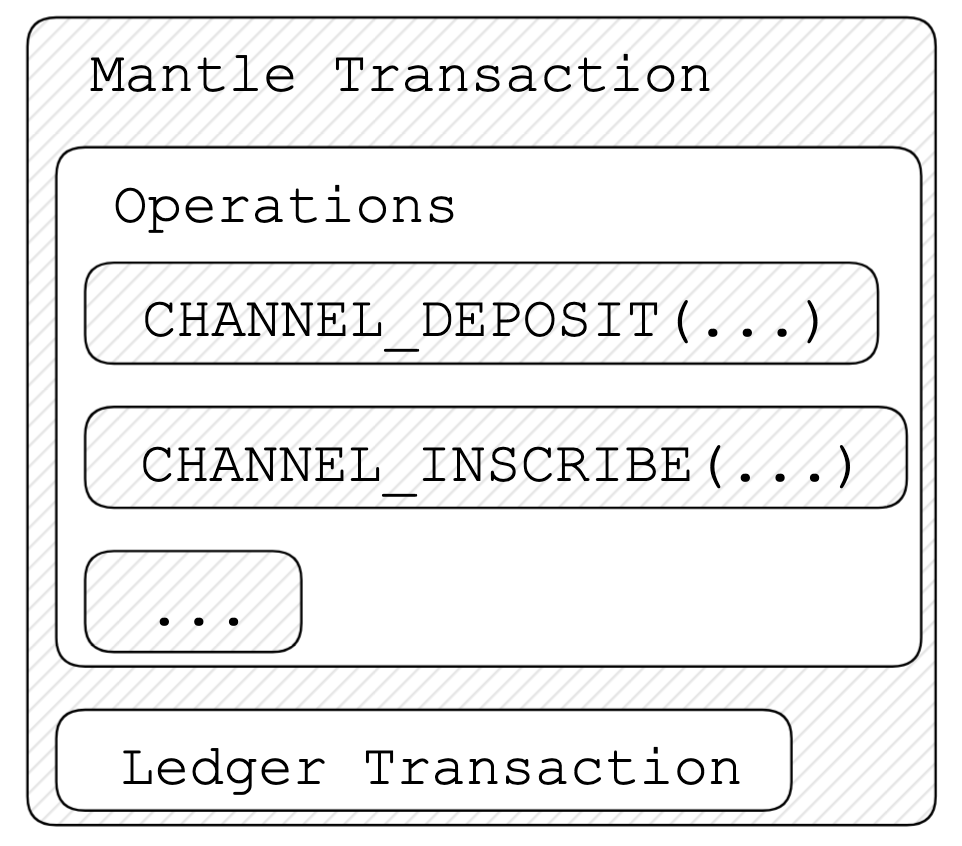

Mantle forms the minimal execution layer of Nomos. Mantle Transactions consist of a sequence of Operations together with a Ledger Transaction used for paying fees and transferring funds.

┌─────────────────────────────────┐
│       Mantle Transaction        │
├─────────────────────────────────┤
│  Operations                     │
│  ┌───────────────────────────┐  │
│  │   CHANNEL_DEPOSIT(...)    │  │
│  ├───────────────────────────┤  │
│  │   CHANNEL_INSCRIBE(...)   │  │
│  ├───────────────────────────┤  │
│  │          ...              │  │
│  └───────────────────────────┘  │
├─────────────────────────────────┤
│       Ledger Transaction        │
└─────────────────────────────────┘

Sovereign Rollups make use of Mantle Transactions when posting their updates to Nomos. This is done through the use of Mantle Channels and Channel Operations.

Mantle Channels

Mantle Channels are lightweight virtual chains overlaid on top of the Nomos blockchain. Sovereign Rollups are built on top of these channels, allowing them to outsource the hard parts of running a decentralized service to Nomos, namely ordering and replicating state updates.

Channels are permissioned, ordered logs of messages. These messages are signed by the Channel owner and come in two types: Inscriptions or Blobs. Inscriptions store the message data permanently in-ledger, while Blobs store only a commitment to the message data permanently. The actual message data is stored temporarily in NomosDA, just long enough for interested parties to fetch a copy for themselves.

┌───────────┐   ┌──────────────────┐   ┌───────────┐
│ Channel A │   │ Nomos Blockchain │   │ Channel B │
├───────────┤   ├──────────────────┤   ├───────────┤
│    A_3    │   │     Block_6    <─┼───│    B_4    │
│     │     │   │       │          │   │     │     │
│     v     │   │       v          │   │     v     │
│    A_2    │   │     Block_5      │   │    B_3    │
│     │     │   │       │          │   │     │     │
│     v     │──>│       v          │   │     v     │
│    A_1    │   │     Block_4    <─┼───│    B_2    │
│           │   │       │          │   │     │     │
│           │   │       v          │   │     v     │
│           │   │     Block_3      │   │    B_1    │
│           │   │       │          │   │           │
│           │   │       v          │   │           │
│           │   │     Block_2      │   │           │
│           │   │       │          │   │           │
│           │   │       v          │   │           │
│           │   │     Block_1      │   │           │
└───────────┘   └──────────────────┘   └───────────┘

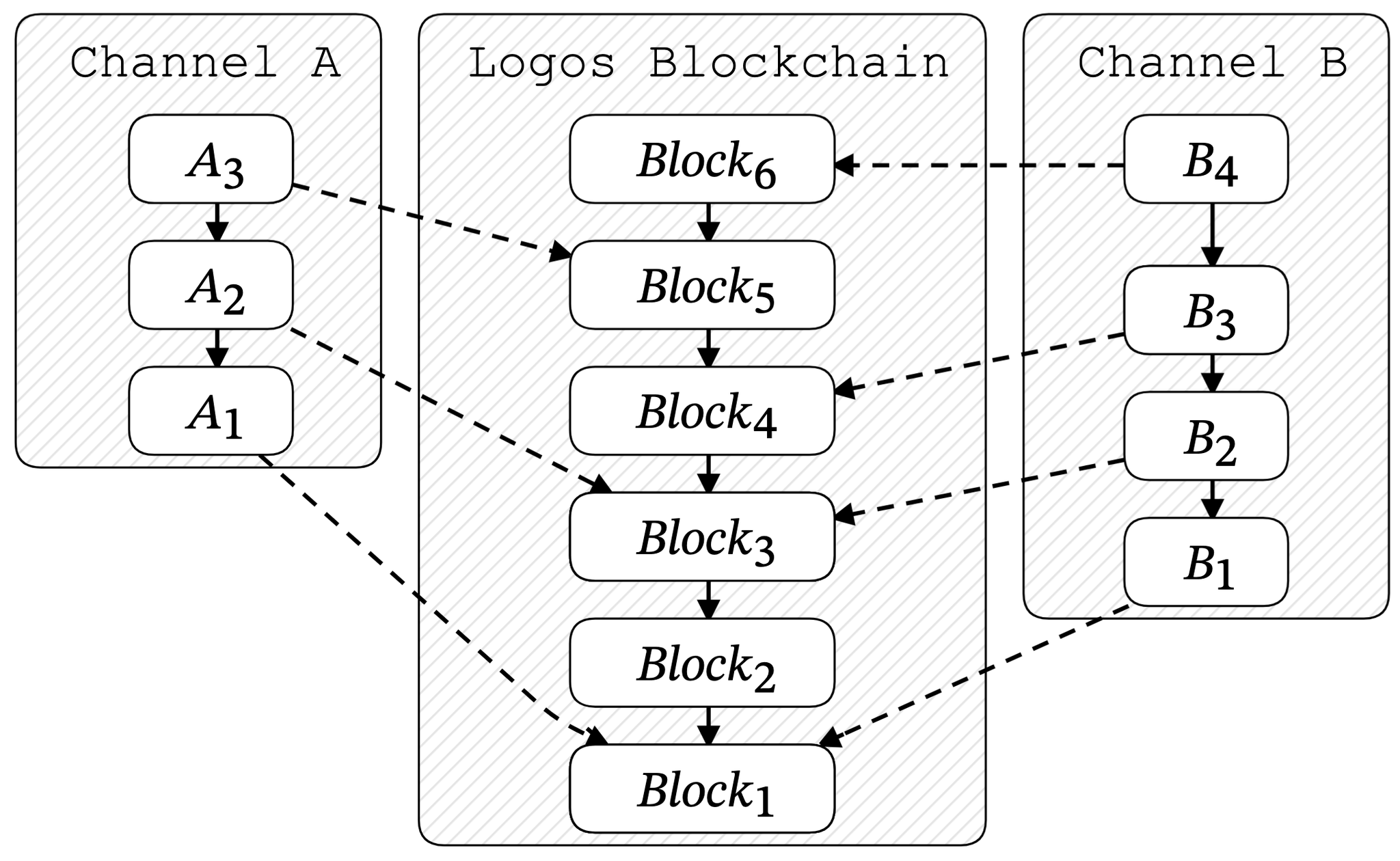

Channels A and B form virtual chains on top of the Nomos blockchain. Channel messages are included in blocks on the Nomos blockchain in such a way that they respect the ordering of channel messages. For example, $B_4$ MUST come after $B_3$ in the Nomos blockchain.

Transient Blobs

The fact that Blobs are stored only temporarily in NomosDA allows Nomos to provide cheap, temporary storage for Sovereign Rollups without incurring long-term scalability concerns. The network can serve a large amount of data without the risk of bloating with obsolete data after years of operations.

At the same time, the transient nature of Blobs shifts the burden of long-term replication from the Nomos Network to the parties interested in that Blob data— that is, the Sovereign Rollup operators, their clients, and other interested parties (archival nodes, block explorers, etc.). So long as at least one party holds a copy of a Blob and is willing to provide it to the network, the Sovereign Rollup can continue to be verified by checking provided Blobs against their corresponding on-chain Blob commitments, which are stored permanently on the Nomos blockchain.

Cryptarchia

Bedrock Mantle is powered by Cryptarchia, a highly scalable, permissionless consensus protocol optimized for privacy and resilience. Cryptarchia is a Private Proof of Stake (PPoS) consensus protocol with properties very similar to Bitcoin. Just like in Bitcoin, where a miner's hashing power is not revealed when they win a block, Cryptarchia ensures privacy for block proposers by breaking the link between a proposal and its proposer. Unlike Bitcoin, Nomos extends block proposer confidentiality to the network layer by routing proposals through the Blend Network, making network analysis attacks prohibitively expensive.

Sovereign Rollups

Sovereign Rollups bridge the gap between traditional server-based applications and decentralized, permissionless applications.

Sovereign Rollups alleviate the contention caused by decentralized applications competing for the limited resources of a single-threaded VM (e.g., EVM in Ethereum) while still remaining auditable and fault tolerant. This is achieved through shifting transaction ordering and execution off of the main chain into Sovereign Rollup nodes, with Sovereign Rollup nodes posting only a state diff or batch of transactions to Nomos as an opaque data Blob.

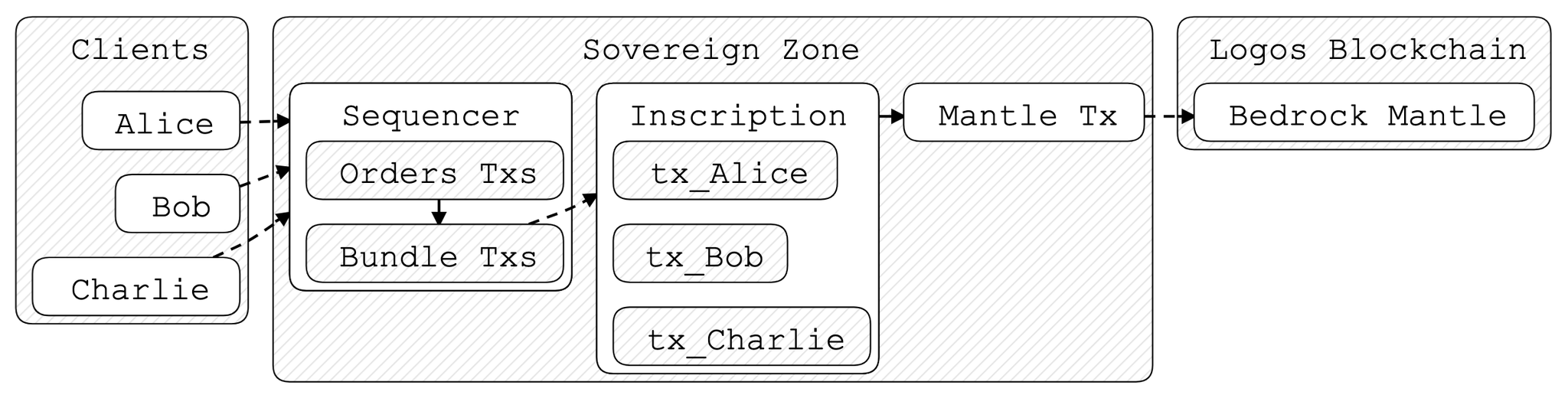

Transaction Flow

┌─────────────┐   ┌─────────────────────────────────────────────┐   ┌──────────────────┐
│   Clients   │   │              Sovereign Zone                 │   │ Nomos Blockchain │
├─────────────┤   ├──────────────┬──────────────────────────────┤   ├──────────────────┤
│             │   │  Sequencer   │        Inscription           │   │                  │
│   Alice   ──┼──>│              │   ┌──────────────────────┐   │   │                  │
│             │   │  Orders Txs  │   │      tx_Alice        │   │   │                  │
│   Bob     ──┼──>│      │       │   ├──────────────────────┤   │   │  Bedrock Mantle  │
│             │   │      v       │   │      tx_Bob          │──>│──>│                  │
│   Charlie ──┼──>│  Bundle Txs  │   ├──────────────────────┤   │   │                  │
│             │   │              │   │      tx_Charlie      │   │   │                  │
│             │   │              │   └──────────────────────┘   │   │                  │
└─────────────┘   └──────────────┴──────────────────────────────┘   └──────────────────┘

The following sequence describes the flow of transactions from clients through a Sovereign Rollup to finality on Nomos:

1. Clients submit transactions to the Sovereign Rollup.

2. The Sovereign Rollup orders, executes, and bundles the transactions into a Blob.

3. The Sovereign Rollup submits the Blob Mantle Transaction along with DA Shares to NomosDA.

4. NomosDA begins replicating the Blob and forwards the Blob Mantle Transaction to the Nomos Mempool.

5. A leader includes the transaction in the next block via Cryptarchia.

6. NomosDA observes the Blob inclusion on-chain (Blob confirmed).

7. The client observes their transaction in a Sovereign Rollup Blob included in Nomos (weak confirmation).

8. The block finalizes after being buried by 2160 blocks.

9. The client observes the Sovereign Rollup Blob finalized (finality).

sequenceDiagram
    participant C as Clients
    participant SZ as Sovereign Zone
    box Nomos Blockchain
        participant Mempool as Nomos Mempool
        participant Cryptarchia
    end
    C->>SZ: Alice's Tx
    C->>SZ: Bob's Tx
    C->>SZ: Charlie's Tx
    SZ-->>SZ: Order, Execute and Bundle Txs into a Blob
    SZ->>Mempool: Blob Mantle Transaction
    Mempool->>Cryptarchia: Leader includes transaction in next block
    Cryptarchia-->>Cryptarchia: Block finalizes after being buried by 2160 blocks
    Cryptarchia->>C: Client observes the SR Blob finalized (finality)

Architecture Benefits

Sovereign Rollups form a virtual chain overlaid on top of the Nomos blockchain. This architecture allows application developers to easily spin up high-performance applications while taking advantage of the security of Nomos to distribute the application state widely for auditing and resilience purposes.

References

Normative

• NOMOS-CRYPTARCHIA-V1-PROTOCOL - Cryptarchia consensus protocol specification
• BEDROCK-V1.1-MANTLE-SPECIFICATION - Mantle Transaction and Operation specification

Informative

• Bedrock Architecture Overview - Original architecture overview document

Copyright

Copyright and related rights waived via CC0.
